Schauinsland T44

Schauinsland T44; SABA; Villingen (ID = 108888) Television

Schauinsland T44; SABA; Villingen (ID = 345933) Television

Schauinsland T44; SABA; Villingen (ID = 345934) Television

Schauinsland T44; SABA; Villingen (ID = 345935) Television

Schauinsland T44; SABA; Villingen (ID = 345936) Television
Schauinsland T44; SABA; Villingen (ID = 466796) Television Schauinsland T44; SABA; Villingen (ID = 466797) Television
Schauinsland T44; SABA; Villingen (ID = 466798) Television Schauinsland T44; SABA; Villingen (ID = 343773) Television
Schauinsland T44; SABA; Villingen (ID = 343779) Television Schauinsland T44; SABA; Villingen (ID = 313333) Television
Schauinsland T44; SABA; Villingen (ID = 320919) Television Schauinsland T44; SABA; Villingen (ID = 343774) Television
Schauinsland T44; SABA; Villingen (ID = 343777) Television Schauinsland T44; SABA; Villingen (ID = 343780) Television
Use red slider bar for more.
Schauinsland T44; SABA; Villingen (ID = 466796) Television

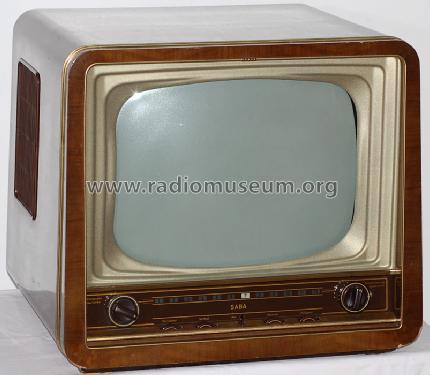

SABA; Villingen: Schauinsland T44 [Television] ID = 466796 803x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T44, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 PCF82 EF80 EF80 EF80 EF80 PY83 PL83 PCF82 EF80 PABC80 PL82 ECL80 ECL80 ECL80 PL81 EY86 MW43-64
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 38900/5500 kHz; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Schauinsland T44 - SABA; Villingen
Material Wooden case
Dimensions (WHD) 515 x 450 x 565 mm / 20.3 x 17.7 x 22.2 inch
Notes

Saba Schauinsland T44 ist der deutlich verbesserte Nachfolger der Modelle Schauinsland WII und WIII. Das nun einteilige Chassis ist eine völlige Neukonstruktion, im Vorjahr wurden noch 3 Teilchassis verwendet.
Empfangsbereich: VHF Bd. I und III
Videogleichrichter: Germanium-Diode OA160
Netzschalter ist ein Schlüsselschalter (Kindersicherung).

Anschluss für Kabelfernbedienung (Regelung von Lautstärke u. Helligkeit;
Anschluss für zweiten Lautsprecher.

Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Price in first year of sale 948.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
Here you find 1588 models, 1441 with images and 1084 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
