Schauinsland W II (2)
SABA; Villingen: Schauinsland W II [Television] ID = 22800 855x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Schwer & Söhne, GmbH | ||||
|---|---|---|---|---|---|
| Year: 1953/1954 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 20: EC92 ECC81 EF80 EF80 EF80 EB41 PL83 EF80 EF80 PABC80 PL82 ECC82 PL82 ECC82 ECC82 ECC82 PL81 PY81 EY51 MW36-44 or Bm35R-2 | ||||

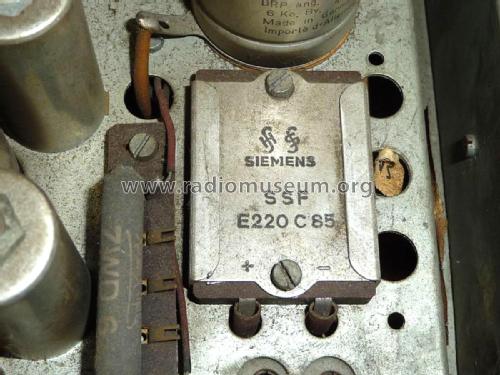

| Semiconductors (the count is only for transistors) | E220C80 |
| Main principle | Superhet with RF-stage; ZF/IF 25500/5500 kHz |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch |
| Power out | 5 W (unknown quality) |
| from Radiomuseum.org | Model: Schauinsland W II - SABA; Villingen |

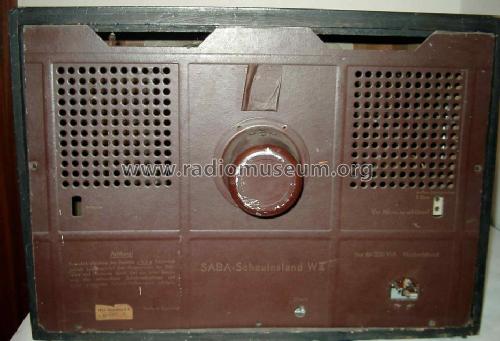

| Material | Wooden case |

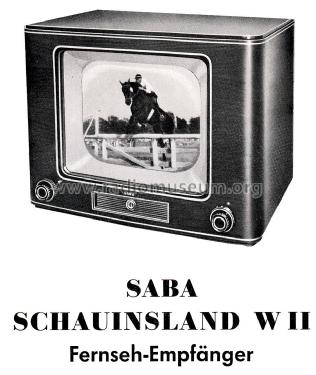

| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 570 x 420 x 420 mm / 22.4 x 16.5 x 16.5 inch |
| Notes | 10 VHF-Kanäle im Band I und III (+ 2 Reserve). Mit Bildröhre Bm35R-2 (metallhinterlegt): Verkaufspreis 1098,-DM |
| Net weight (2.2 lb = 1 kg) | 23 kg / 50 lb 10.6 oz (50.661 lb) |
| Price in first year of sale | 1'035.00 DM |
| External source of data | Erb |
| Source of data | Kat.d.Rundf.GrossH.1953/54 |
| Mentioned in | Funk-Technik (FT) (17/1953 Saba Werbe-Anzeige) |
| Literature/Schematics (1) | Funkschau (5/1953 S.80, Neuvorstellung) |
