Schauinsland T 125-15 Automatic

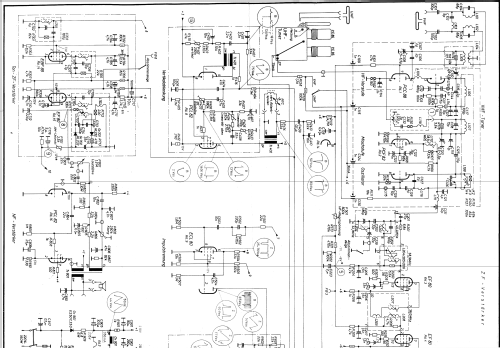

Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1740259) Television

Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1740260) Television

Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1740262) Television

Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1740263) Television

Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1740265) Television
Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1069041) Television
Use red slider bar for more.
Schauinsland T 125-15 Automatic; SABA; Villingen (ID = 1069041) Television
SABA; Villingen: Schauinsland T 125-15 Automatic [Television] ID = 1069041 918x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T 125-15 Automatic, SABA; Villingen:
Diese Annonce findet sich im Merian - Heft 1 / XIV vom Januar 1961.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1960/1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: PCC88 PCF82 EF80 PCL84 ECL80 PCL82 ECH81 PL36 PY88 DY86 EBF89 PC86 AW53-88
Semiconductors (the count is only for transistors) OA159 OA160 OA161 RL232
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Schauinsland T 125-15 Automatic - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 495 x 360 mm / 23.2 x 19.5 x 14.2 inch
Notes
  • Schwarzweiß-Fernsehempfänger
  • 53cm Bilddiagonale
  • Leistungsaufnahme: etwa 160W
  • Sicherung: 1,25A
  • Antenneneingang: 240 Ohm
  • VHF: Kanäle 2-11 + Reservekanäle 11 und 12
  • UHF: Kanäle 14-53 (Bei Geräten UHF-Teil nachrüstbar)
    • UHF gegen Mehrpreis (105,- DM), dann 18 Röhren
  • ZF
    • Bildträger 38,9MHz
    • Tonträger 33,4Mhz
    • Ton-ZF 5,5Mhz
  • Konzertlautsprecher 15x22cm
Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 869.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from SABA; Villingen
