Schauinsland W III (3) Truhe

Schauinsland W III ; SABA; Villingen (ID = 25044) Television

Schauinsland W III ; SABA; Villingen (ID = 203277) Television

Schauinsland W III ; SABA; Villingen (ID = 203278) Television

Schauinsland W III ; SABA; Villingen (ID = 203279) Television

Schauinsland W III ; SABA; Villingen (ID = 1665783) Television

Schauinsland W III ; SABA; Villingen (ID = 2055035) Television

Schauinsland W III ; SABA; Villingen (ID = 2055036) Television
Schauinsland W III ; SABA; Villingen (ID = 1244183) Television Schauinsland W III ; SABA; Villingen (ID = 319799) Television
Schauinsland W III ; SABA; Villingen (ID = 168067) Television Schauinsland W III ; SABA; Villingen (ID = 2011011) Television
Schauinsland W III ; SABA; Villingen (ID = 2011012) Television Schauinsland W III ; SABA; Villingen (ID = 2011013) Television
Schauinsland W III ; SABA; Villingen (ID = 2011014) Television Schauinsland W III ; SABA; Villingen (ID = 2011015) Television
Schauinsland W III ; SABA; Villingen (ID = 2011017) Television Schauinsland W III ; SABA; Villingen (ID = 2011018) Television
Use red slider bar for more.
Schauinsland W III ; SABA; Villingen (ID = 1244183) Television

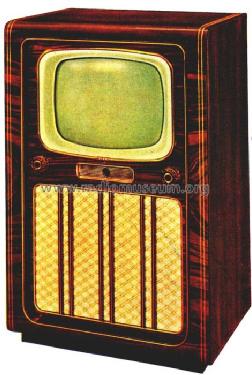

SABA; Villingen: Schauinsland W III [Television] ID = 1244183 933x1226
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland W III (3) Truhe, SABA; Villingen:
Gerät steht im Museum für Kommunikation, Depot Heusenstamm.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1953/1954 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC84 ECC81 EF80 EF80 EF80 PL83 EF80 EF80 PABC80 PL82 ECC82 ECC82 PL82 ECC82 ECC82 PL81 PY81 EY51 EB41 MW43-61
Main principle Super-Heterodyne (Super in general); ZF/IF 25500 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Schauinsland W III [Truhe] - SABA; Villingen
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 660 x 995 x 480 mm / 26 x 39.2 x 18.9 inch
Notes Nur VHF-Bereich Band I und III.
Bildröhren möglich: BS42 R-3 oder Bmv 42/2 mit aluminisiertem Schirm oder MW43-61
Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1953/54
Mentioned in -- Original-techn. papers.
