Truhe Freiburg-Automatic 10; SABA; Villingen (ID = 313628) Radio

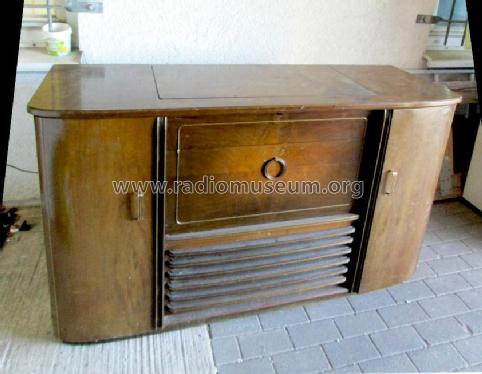

SABA; Villingen: Truhe Freiburg-Automatic 10 [Radio] ID = 313628 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Truhe Freiburg-Automatic 10, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC81 EC92 ECH81 EF89 EM34 EBF80 EABC80 ECC83 EL84 EL84 EABC80 ECL80
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 18 W (unknown quality)
from Radiomuseum.org Model: Truhe Freiburg-Automatic 10 - SABA; Villingen
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1529 x 890 x 510 mm / 60.2 x 35 x 20.1 inch
Notes Rundfunk-Chassis = Freiburg-Automatic;
Phono-Chassis = Perpetuum-Ebner Rex A-Sonderklasse..
Abgleich (auch Steuerfilter)
Alignment (also automatic filter)
Net weight (2.2 lb = 1 kg) 96 kg / 211 lb 7.3 oz (211.454 lb)
Price in first year of sale 1'995.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55


All listed radios etc. from SABA; Villingen
Here you find 1571 models, 1437 with images and 1062 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Truhe Freiburg-Automatic 10
Threads: 1 | Posts: 1
Hits: 1800     Replies: 0
saba: 10 (W10); Truhe Freiburg-Automatic - Schaltbild
Mario Tieke
31.Dec.04
  1 Bei der Reparatur dieser Truhe (Hergestellt am 18.11.1954 laut Stempel) sind mir Fehler im Schaltbild aufgefallen:
1. Ansteuerung der Endröhre EL84 (II)  + Phasenumkehrröhre EABC80 (I) ist falsch - Zur Reparatur Deteils aus dem Schaltbild Freiburg Automatik 3DS entnehmen.
2. Kondensator 10µF in Reihe zu den Hochton-Lautsprechern fehlt im Schaltbild.

SABA; Villingen: Truhe Freiburg-Automatic 10
