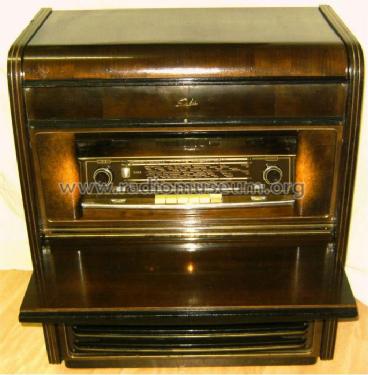

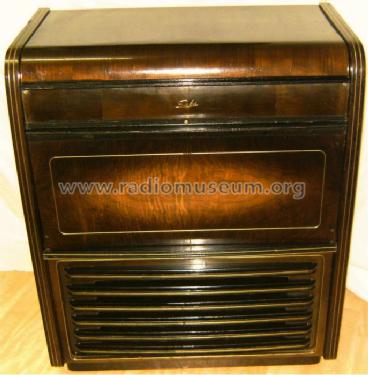

Truhe Schwarzwald W5/10

SABA; Villingen

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 19698
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 472/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Truhe Schwarzwald W5/10 - SABA; Villingen
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 730 x 860 x 414 mm / 28.7 x 33.9 x 16.3 inch
  • Notes
  • Rundfunk-Chassis = Schwarzwald W5;
    Phono-Chassis = Perpetuum-Ebner Rex A.
  • Net weight (2.2 lb = 1 kg)
  • 48 kg / 105 lb 11.6 oz (105.727 lb)
  • Price in first year of sale
  • 998.00 DM
  • External source of data
  • Erb
