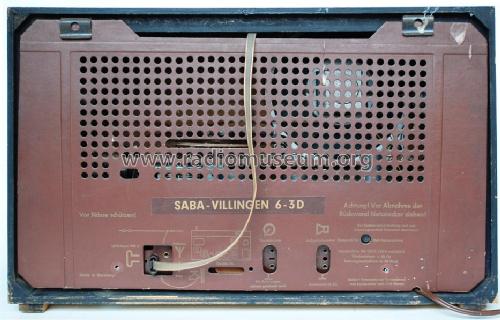

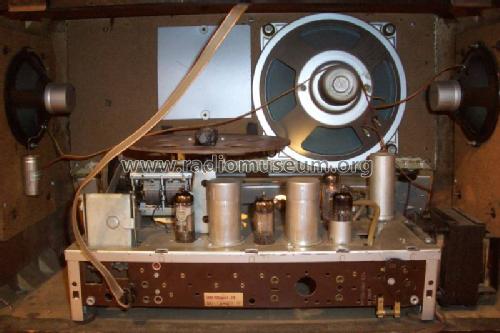

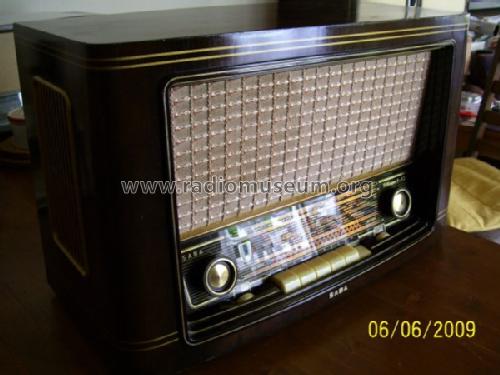

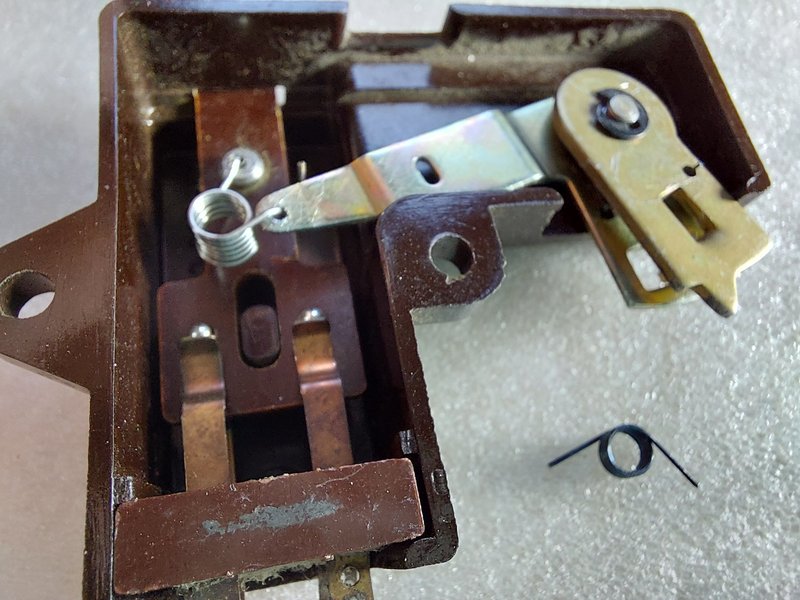

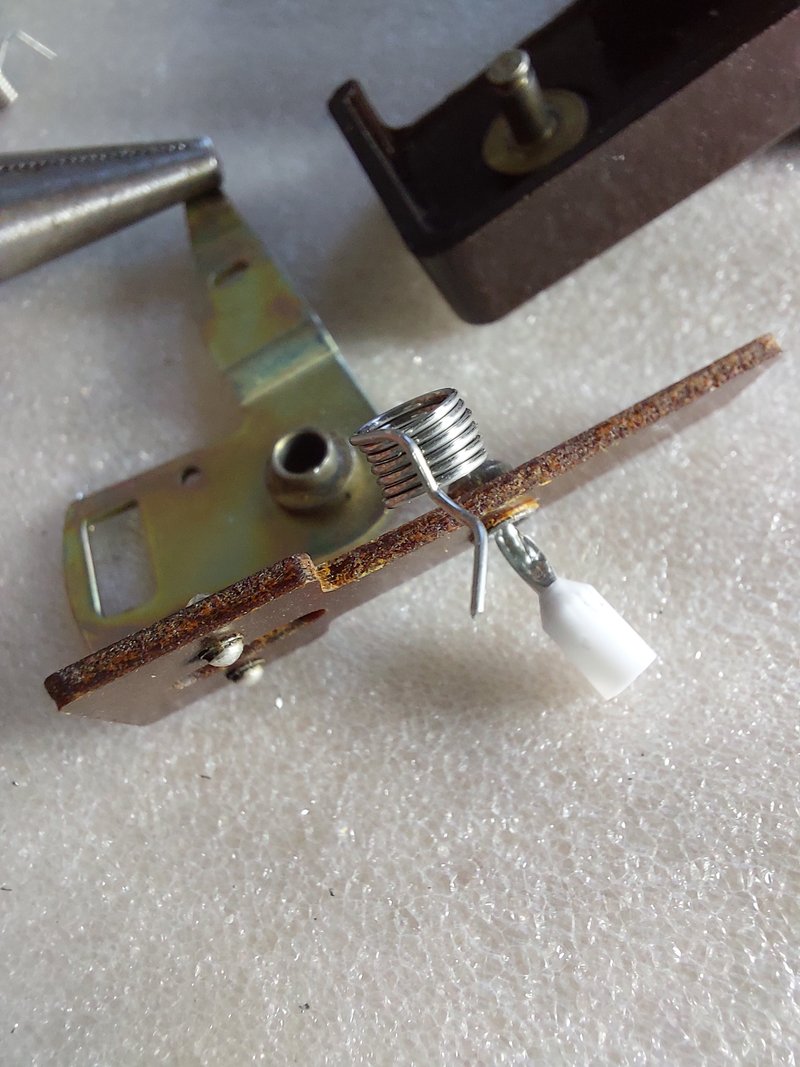

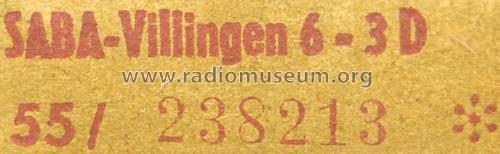

Villingen 6-3D

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1955–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20628

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 472/6750 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Villingen 6-3D - SABA; Villingen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 352 x 264 mm / 22.4 x 13.9 x 10.4 inch

• Notes
• drehbare Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 309.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Mentioned in
• -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1634 models, 1480 with images and 1165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
