Villingen W-P Pressstoffgehäuse

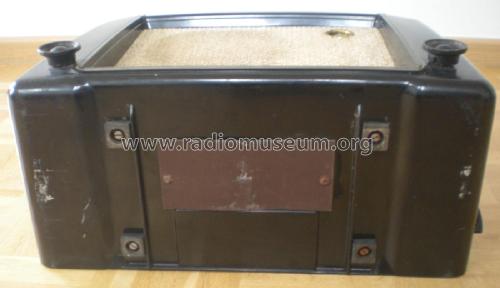

Villingen W-P; SABA; Villingen (ID = 692756) Radio

Villingen W-P; SABA; Villingen (ID = 692758) Radio

Villingen W-P; SABA; Villingen (ID = 692719) Radio
Villingen W-P; SABA; Villingen (ID = 28123) Radio Villingen W-P; SABA; Villingen (ID = 28124) Radio

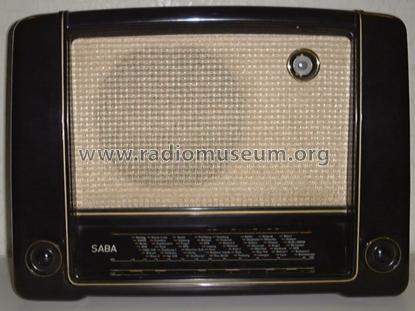

Villingen W-P; SABA; Villingen (ID = 28125) Radio Villingen W-P; SABA; Villingen (ID = 35976) Radio
Villingen W-P; SABA; Villingen (ID = 1850540) Radio Villingen W-P; SABA; Villingen (ID = 1850541) Radio
Villingen W-P; SABA; Villingen (ID = 1850543) Radio Villingen W-P; SABA; Villingen (ID = 1850544) Radio

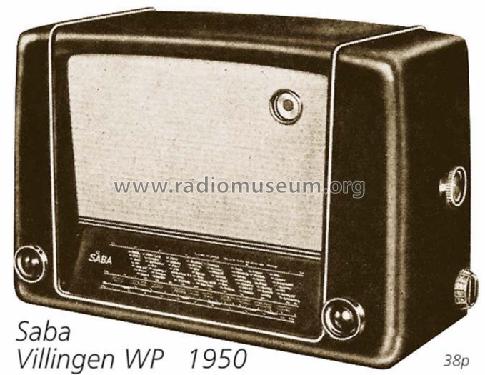

Villingen W-P; SABA; Villingen (ID = 732) Radio Villingen W-P; SABA; Villingen (ID = 1850546) Radio
Use red slider bar for more.

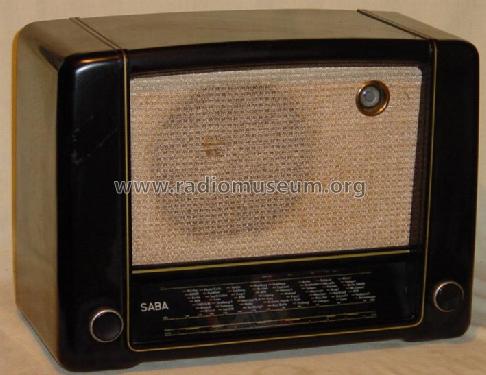

Villingen W-P; SABA; Villingen (ID = 28123) Radio
SABA; Villingen: Villingen W-P [Radio] ID = 28123 709x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model Villingen W-P Pressstoffgehäuse, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ41 EM11
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Villingen W-P [Pressstoffgehäuse] - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 471 x 347 x 216 mm / 18.5 x 13.7 x 8.5 inch
Notes Eignet sich zum Einbau des UKW-S bzw. UKW-AW2
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 230.00 DM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5016)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
