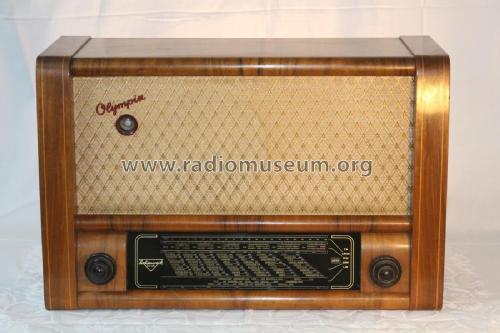

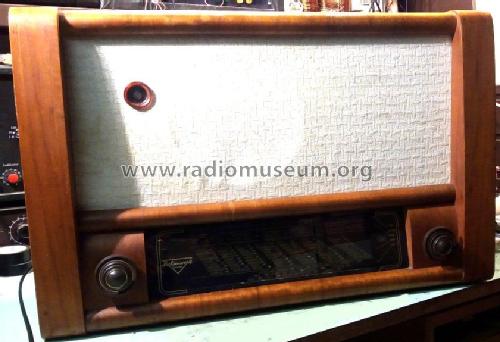

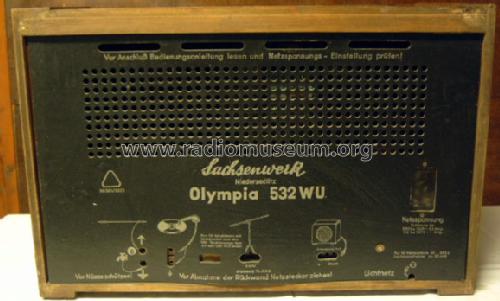

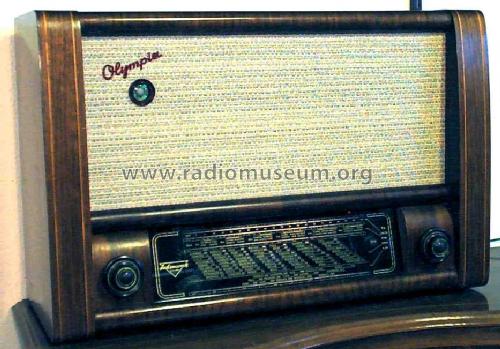

Olympia 532WU mit magischem Auge

• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17500

• • Brand: VEB Elektromaschinenbau Sachsenwerk

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF14 ECH11 EBF11 ECL11 EM11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Olympia 532WU [mit magischem Auge] - Sachsenwerk Niedersedlitz,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 385 x 240 mm / 22.8 x 15.2 x 9.4 inch

• Notes

• Vor 1954 siehe 532WU ohne magischem Auge.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 380.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
