Ravenna 101
Salora; Salo
- Country
- Finland
- Manufacturer / Brand
- Salora; Salo
- Year
- 1961/1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136313
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 6 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ravenna 101 - Salora; Salo
- Shape

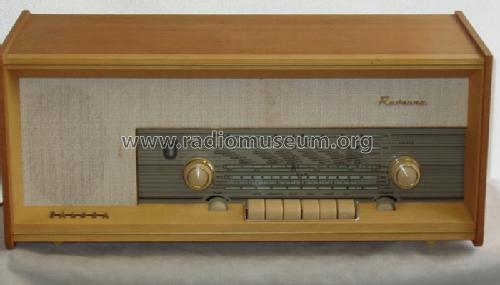

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 575 x 250 x 240 mm / 22.6 x 9.8 x 9.4 inch
- Notes

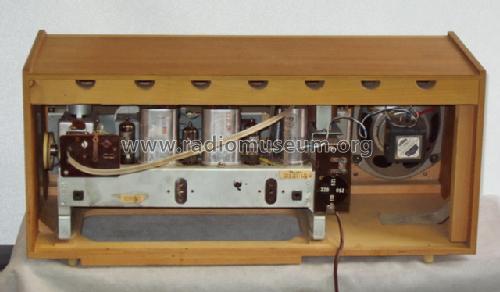

- Speker oval 5x7inch. SW fine tuning via FM -tuning knob. Ravenna 101 is a slight update of the earlier Ravenna model. There are two identification marks: a) Ravenna 101 logo on the rear panel, b) two tone controls (bass, treble) on the sides of band switch buttons. All other differences are minor in components and circuitry.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Literature/Schematics (1)
- - - Data from my own collection
- Author
- Model page created by Ake Nyholm. See "Data change" for further contributors.
