Traumland W

Traumland W; Schaleco - Schackow, (ID = 38036) Radio

Traumland W; Schaleco - Schackow, (ID = 38037) Radio

Traumland W; Schaleco - Schackow, (ID = 5704) Radio
Traumland W; Schaleco - Schackow, (ID = 123071) Radio Traumland W; Schaleco - Schackow, (ID = 123074) Radio
Traumland W; Schaleco - Schackow, (ID = 123073) Radio Traumland W; Schaleco - Schackow, (ID = 123072) Radio
Traumland W; Schaleco - Schackow, (ID = 422854) Radio Traumland W; Schaleco - Schackow, (ID = 422855) Radio

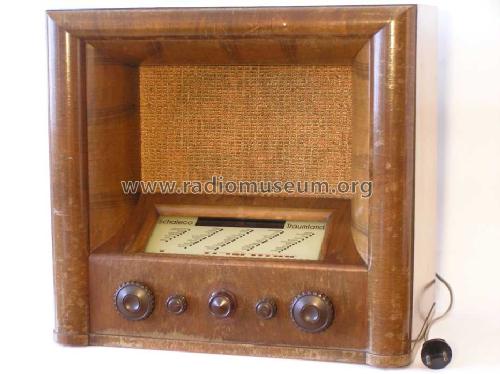

Traumland W; Schaleco - Schackow, (ID = 718624) Radio Traumland W; Schaleco - Schackow, (ID = 718625) Radio
Traumland W; Schaleco - Schackow, (ID = 718626) Radio Traumland W; Schaleco - Schackow, (ID = 718627) Radio
Use red slider bar for more.
Traumland W; Schaleco - Schackow, (ID = 123071) Radio
Schaleco - Schackow,: Traumland W [Radio] ID = 123071 485x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model Traumland W, Schaleco - Schackow, Leder und Co; Berlin

Country:  Germany
Manufacturer / Brand:  Schaleco - Schackow, Leder und Co; Berlin
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AF7 AB2 AF7 AL2 AZ1
Main principle TRF with diode detector; 1 Special; 2 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Traumland W - Schaleco - Schackow, Leder und
Material Wooden case
Shape Tablemodel, with any shape - general.
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Schaleco - Schackow, Leder und Co; Berlin
Here you find 119 models, 68 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
