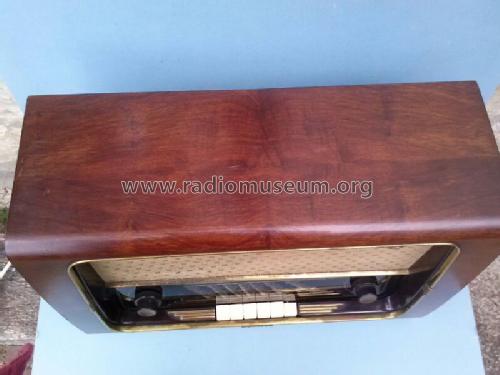

Adria 55
Use red slider bar for more.
Schaub und Schaub-: Adria 55 [Radio] ID = 1688859 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1953/1954 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECC81 ECH81 EF93 EABC80 EM85 EL41 EZ80 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 472/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Adria 55 - Schaub und Schaub-Lorenz |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 550 x 365 x 230 mm / 21.7 x 14.4 x 9.1 inch |
| Notes | Im VDR-Handbuch 1953/54 ohne "55" geführt. |
| Net weight (2.2 lb = 1 kg) | 9.5 kg / 20 lb 14.8 oz (20.925 lb) |
| Price in first year of sale | 299.00 DM |
| External source of data | Erb |
| Source of data | Kat.d.Rundf.GrossH.1953/54 |
