Amigo T20LF

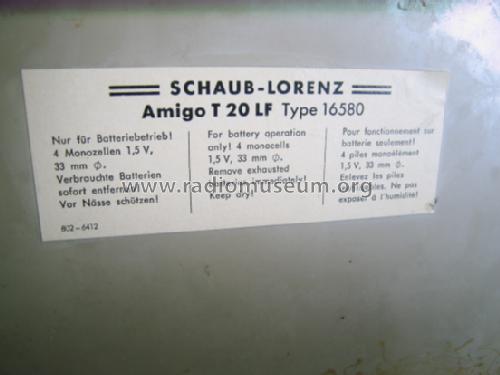

Amigo T20LF; Schaub und Schaub- (ID = 956545) Radio Amigo T20LF; Schaub und Schaub- (ID = 956547) Radio
Use red slider bar for more.
Amigo T20LF; Schaub und Schaub- (ID = 956545) Radio
Schaub und Schaub-: Amigo T20LF [Radio] ID = 956545 552x414
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo T20LF, Schaub und Schaub-Lorenz:
D_Schaub-Lorenz_Amigo T20LF.jpg

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Amigo T20LF - Schaub und Schaub-Lorenz
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 264 x 178 x 90 mm / 10.4 x 7 x 3.5 inch
Notes Unterschied zu Modell T20L: EIN-AUS Taste ist durch Antennen-Umschalter ersetzt.
Ein-Aus mit Lautstärke-Regler gekoppelt.

Model page created by Eddy Rischmann. See "Data change" for further contributors.
