Schaub und Schaub-: Atlantic [Radio] ID = 2071330 1235x926
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlantic, Schaub und Schaub-Lorenz:

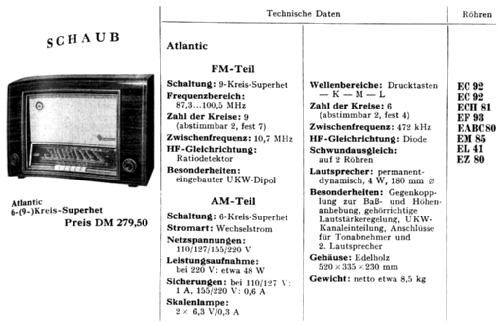

Aus den Serviceunterlagen

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF93 EM85 EABC80 EL41 EZ80
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Atlantic - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 335 x 230 mm / 20.5 x 13.2 x 9.1 inch
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Price in first year of sale 279.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54


All listed radios etc. from Schaub und Schaub-Lorenz
