Balalaika 58 7008 PW Telefunken

Balalaika 58 7008; Schaub und Schaub- (ID = 64109) Radio

Balalaika 58 7008; Schaub und Schaub- (ID = 64110) Radio

Balalaika 58 7008; Schaub und Schaub- (ID = 64111) Radio
Balalaika 58 7008; Schaub und Schaub- (ID = 154730) Radio Balalaika 58 7008; Schaub und Schaub- (ID = 154731) Radio
Balalaika 58 7008; Schaub und Schaub- (ID = 154732) Radio Balalaika 58 7008; Schaub und Schaub- (ID = 154733) Radio
Balalaika 58 7008; Schaub und Schaub- (ID = 360847) Radio Balalaika 58 7008; Schaub und Schaub- (ID = 1058000) Radio
Balalaika 58 7008; Schaub und Schaub- (ID = 1058001) Radio Balalaika 58 7008; Schaub und Schaub- (ID = 1058003) Radio
Balalaika 58 7008; Schaub und Schaub- (ID = 1058005) Radio Balalaika 58 7008; Schaub und Schaub- (ID = 1058006) Radio
Use red slider bar for more.
Balalaika 58 7008; Schaub und Schaub- (ID = 154730) Radio
Schaub und Schaub-: Balalaika 58 7008 [Radio] ID = 154730 500x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model Balalaika 58 7008 PW Telefunken, Schaub und Schaub-Lorenz:
aus Ebay Verk. kogel96 Nr. 6575070306

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Balalaika 58 7008 [PW Telefunken] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 775 x 800 x 410 mm / 30.5 x 31.5 x 16.1 inch

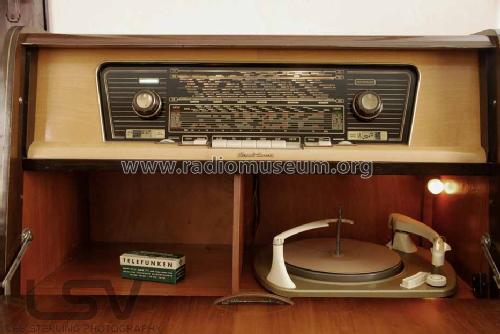

Notes Phono-Chassis = Telefunken TW561.
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Price in first year of sale 699.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
Mentioned in -- Original-techn. papers.


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 961 models, 806 with images and 680 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Schaub und Schaub-: Balalaika 58 7008
Threads: 1 | Posts: 1
Hits: 1736     Replies: 0
schaub: 58; Balalaika
Franz-Josef Haffner
31.Dec.03
  1 technische Unterlagen siehe Modell:
http://www.radiomuseum.org/dsp_modell.cfm?model_id=21406

Schaub und Schaub-: Balalaika 58 7008
