Balalaika Stereo 40 22560/61 poliert

Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 41990) Radio
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486006) Radio Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486005) Radio
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486007) Radio Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 89058) Radio
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486008) Radio Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486009) Radio
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486010) Radio Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486011) Radio
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486012) Radio
Use red slider bar for more.
Balalaika Stereo 40 22560/61; Schaub und Schaub- (ID = 486006) Radio

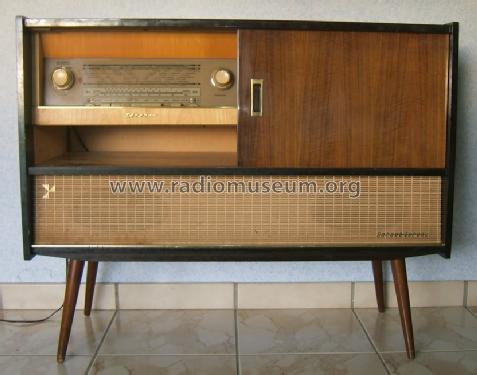

Schaub und Schaub-: Balalaika Stereo 40 22560/61 [Radio] ID = 486006 833x654
Select picture or schematic to display from thumbnails on the right and click for download.
For model Balalaika Stereo 40 22560/61 poliert, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 ELL80 EM84
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Balalaika Stereo 40 22560/61 [poliert] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 950 x 775 x 400 mm / 37.4 x 30.5 x 15.7 inch

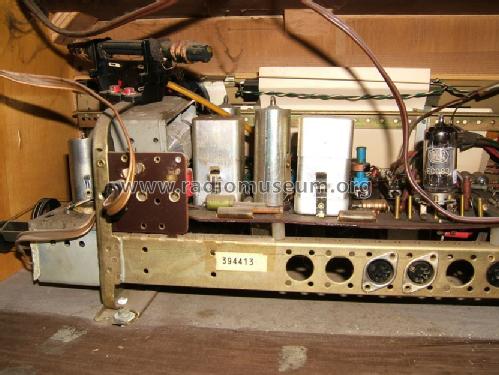

Notes Rundfunk-Chassis = 93254, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W; Stereo-Decoder nachrüstbar;

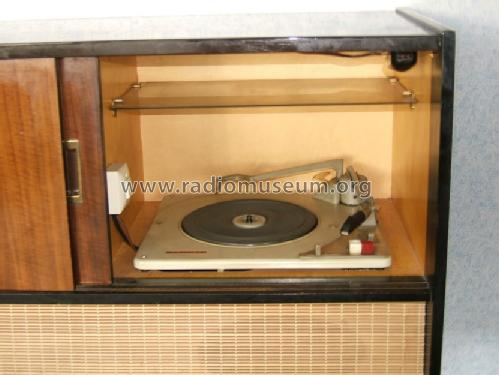

Phono-Chassis = Philips AG1025.
Net weight (2.2 lb = 1 kg) 31.9 kg / 70 lb 4.2 oz (70.264 lb)
Price in first year of sale 698.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
