Goldklang 58 4006

Goldklang 58 4006; Schaub und Schaub- (ID = 37191) Radio

Goldklang 58 4006; Schaub und Schaub- (ID = 37192) Radio

Goldklang 58 4006; Schaub und Schaub- (ID = 37193) Radio

Goldklang 58 4006; Schaub und Schaub- (ID = 37194) Radio
Goldklang 58 4006; Schaub und Schaub- (ID = 2356380) Radio Goldklang 58 4006; Schaub und Schaub- (ID = 2356384) Radio
Goldklang 58 4006; Schaub und Schaub- (ID = 2356382) Radio Goldklang 58 4006; Schaub und Schaub- (ID = 2356381) Radio
Goldklang 58 4006; Schaub und Schaub- (ID = 2356383) Radio Goldklang 58 4006; Schaub und Schaub- (ID = 2356379) Radio
Goldklang 58 4006; Schaub und Schaub- (ID = 2011404) Radio Goldklang 58 4006; Schaub und Schaub- (ID = 297662) Radio
Goldklang 58 4006; Schaub und Schaub- (ID = 21586) Radio Goldklang 58 4006; Schaub und Schaub- (ID = 21587) Radio
Use red slider bar for more.

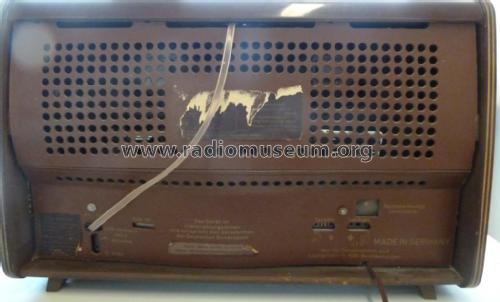

Goldklang 58 4006; Schaub und Schaub- (ID = 2356380) Radio
Schaub und Schaub-: Goldklang 58 4006 [Radio] ID = 2356380 1024x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldklang 58 4006, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 ECL82 ECL82
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Goldklang 58 4006 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 390 x 275 mm / 25.2 x 15.4 x 10.8 inch
Net weight (2.2 lb = 1 kg) 12.4 kg / 27 lb 5 oz (27.313 lb)
Price in first year of sale 399.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 930 models, 789 with images and 647 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
