Goldy 2P (IIP) (Export) 3620

Goldy 2P 3620; Schaub und Schaub- (ID = 91478) Radio Goldy 2P 3620; Schaub und Schaub- (ID = 91479) Radio
Goldy 2P 3620; Schaub und Schaub- (ID = 458894) Radio Goldy 2P 3620; Schaub und Schaub- (ID = 1362471) Radio
Goldy 2P 3620; Schaub und Schaub- (ID = 1362472) Radio Goldy 2P 3620; Schaub und Schaub- (ID = 1362473) Radio
Use red slider bar for more.
Goldy 2P 3620; Schaub und Schaub- (ID = 91478) Radio
Schaub und Schaub-: Goldy 2P 3620 [Radio] ID = 91478 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldy 2P (IIP) (Export) 3620, Schaub und Schaub-Lorenz:

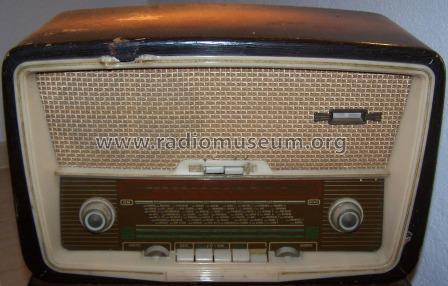

Front

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Goldy 2P 3620 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 440 x 280 x 200 mm / 17.3 x 11 x 7.9 inch
Notes Dial glass and back cover is written in Portuguese language.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)

Model page created by Mario Coelho. See "Data change" for further contributors.
