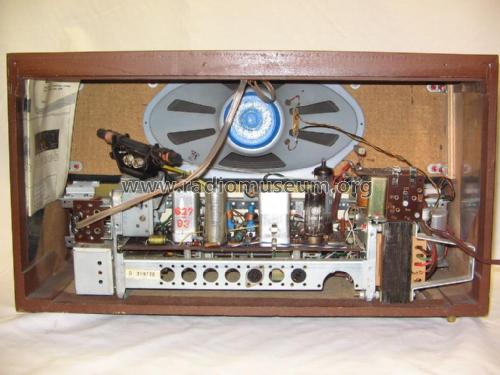

Goldy 40 06310; Schaub und Schaub- (ID = 2345090) Radio
Schaub und Schaub-: Goldy 40 06310 [Radio] ID = 2345090 1024x768

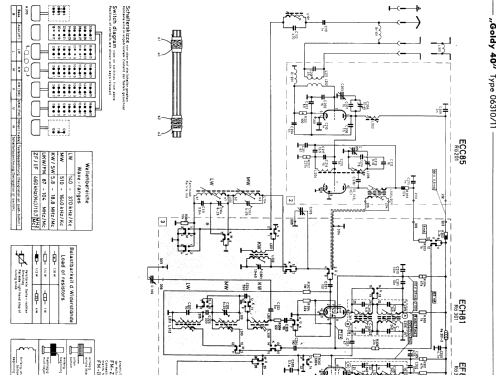

Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldy 40 06310 poliert, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Goldy 40 06310 [poliert] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 275 x 190 mm / 18.9 x 10.8 x 7.5 inch
Notes
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Price in first year of sale 299.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
