• Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6041

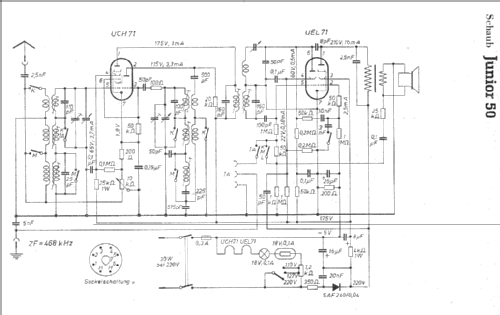

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz; Reaction
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org

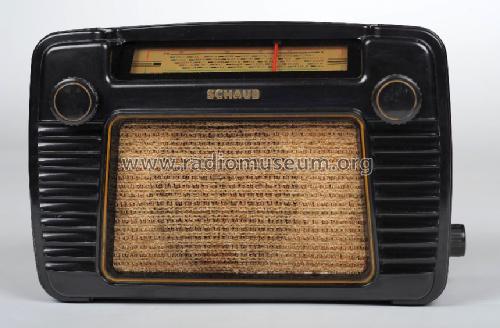

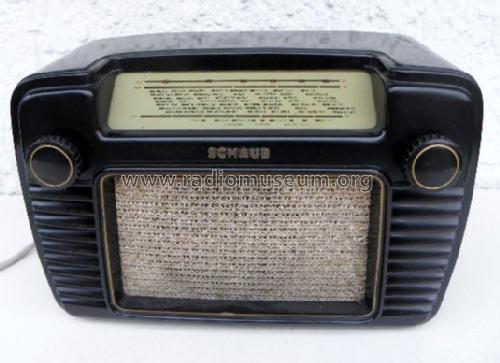

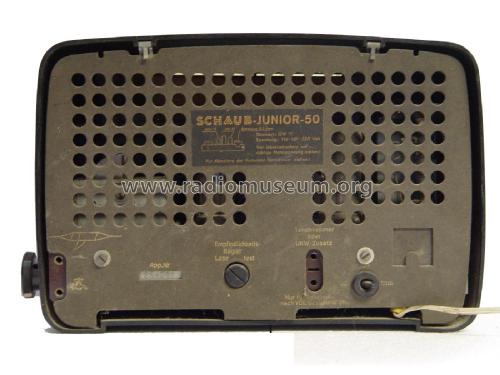

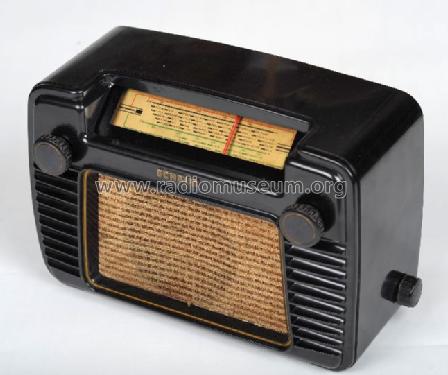

  • Model: Junior 50 - Schaub und Schaub-Lorenz
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 310 x 205 x 130 mm / 12.2 x 8.1 x 5.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
  • Price in first year of sale
  • 218.00 DM
  • Circuit diagram reference
  • Lange-Nowisch
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
