Phonosuper Stereo 10 neu,poliert

Phonosuper Stereo 10; Schaub und Schaub- (ID = 63696) Radio

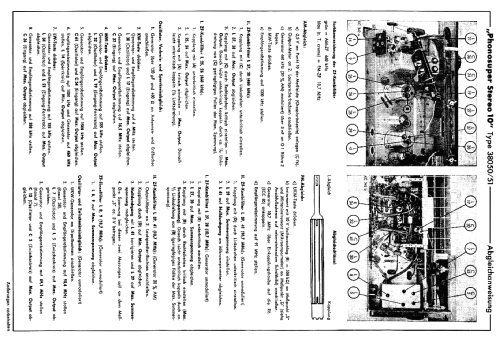

Phonosuper Stereo 10; Schaub und Schaub- (ID = 63697) Radio

Phonosuper Stereo 10; Schaub und Schaub- (ID = 63698) Radio

Phonosuper Stereo 10; Schaub und Schaub- (ID = 63699) Radio
Phonosuper Stereo 10; Schaub und Schaub- (ID = 49832) Radio Phonosuper Stereo 10; Schaub und Schaub- (ID = 49800) Radio
Phonosuper Stereo 10; Schaub und Schaub- (ID = 49831) Radio Phonosuper Stereo 10; Schaub und Schaub- (ID = 50405) Radio
Phonosuper Stereo 10; Schaub und Schaub- (ID = 50406) Radio Phonosuper Stereo 10; Schaub und Schaub- (ID = 50407) Radio
Phonosuper Stereo 10; Schaub und Schaub- (ID = 50408) Radio Phonosuper Stereo 10; Schaub und Schaub- (ID = 581185) Radio
Phonosuper Stereo 10; Schaub und Schaub- (ID = 581186) Radio Phonosuper Stereo 10; Schaub und Schaub- (ID = 581187) Radio
Use red slider bar for more.
Phonosuper Stereo 10; Schaub und Schaub- (ID = 49832) Radio
Schaub und Schaub-: Phonosuper Stereo 10 [Radio] ID = 49832 633x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonosuper Stereo 10 neu,poliert, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 ELL80 EM84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Phonosuper Stereo 10 [neu,poliert] - Schaub und Schaub-Lorenz
Material Wooden case
Dimensions (WHD) 560 x 320 x 303 mm / 22 x 12.6 x 11.9 inch
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 468.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 911 models, 767 with images and 628 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Schaub und Schaub-: Phonosuper Stereo 10
Threads: 3 | Posts: 6
Hits: 288     Replies: 2
schaub: PE Perpetuum Ebner
Tuck Choon Lye
29.May.18
  1

Hi All, may I know what is the model of the turntable - PE Perpetuum Ebner, arm or needle model too, thanks a lot!!



Craig Vodnik
02.Jun.18
  2

Hi Tuck,

Could you share a picture of your turntable?  We need that in order to answer your question.

craig.

Giovanni Cucuzzella
02.Jun.18
  3

Hi Tuck,

it is probably the model 4230. On the model page is also a service manual. Arm or needle are listed there under 38 and 39, respectively.

Regards

Giovanni




Hits: 1679     Replies: 1
Schaub Lorenz Phonosuper Stereo 10
Bryan McAlley
05.Sep.07
  1

I have just obtained one of these radios for restoration and have the German language schematics from this site. I am confused by the designation "stereo", as it only has one loudspeaker and one output! Am I missing something??  Bryan

Beitrag zum Modell verschoben.
Please post from the model side in the future.
Wolfgang Bauer

Martin Bösch
05.Sep.07
  2 Hallo Bryan,
I had a short look to the technical informations, in d_schaub_62_phonosuper_stereo10_beschr.pdf
You can find the solution, at least when Your mother tongue is the german...
it says: in stereo operation, the AF part of the set consists of a dual channel amplifier with the triode part of the EABC80, the tubes EF89 and ELL80 (both channels are separated). The Volume and tone controls as well as the tone pushbuttons
are in tandem configuration. While operating only one control, both channels are influenced simultaneously. With double taps of the volume potentiometer, the set provides a physiological volume control...
... for broadcast reception, both channels are switched together.

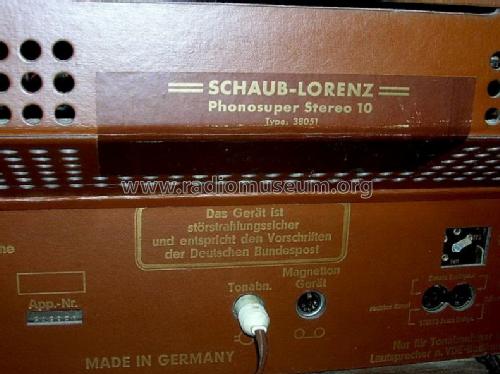

For stereo reproduction, one or two stereo speakers have to be connected. At the rear of the set, You find two standard connectors, where You connect an additional or two stereo speakers.
As stereo speakers, You might use the "Stereovox S" type speakers, broadband speakers or speaker combinations, that reproduce the complete audio spectrum. When an external speaker is plugged in, the internal speaker will automatically be disconnected.
Technical specialities: the set is prepared for the integration of an adaptor for HF (high frequency) stereophony.

This means:
The set has two amplifier strips, used for reproduction of signals from turntable or magnetophone (reel to reel),
reception on FM is only mono, but the set was prepared for an additional FM stereo decoder to be built in.
Compare Your set with the pictures, maybe You find an additional subchassis with the decoder....

hope this helps and You understand my English
kind regards Martin

Hits: 1294     Replies: 0
schaub: Reparaturbericht Phonosuper Stereo 10
Daniel Doll
25.Jun.06
  1 hallo radiofreunde,
habe dieses gerät bei einer entsorgungsfirma auf dem schrott gefunden und mitnehmen dürfen. er stand jetzt eine ganze weile im keller. gestern machte ich mich an die arbeit.
ich schaltete ihn ein und hörte ein knistern und kurz darauf entwickeltet sich ein starker gestank in meiner wekstatt. ich riss sofort das fenster auf und verlies fluchtartig den raum. der gestank war mir gut bekannt; es war der selenbrückengleichrichter. ich tauschte ihn durch die kombination von 2x 10 ohm 5W wiederständen und einem silizium brüchengleichrichter B250C1500.
nach einer sichtkontrolle war klar das auch der netztrafo hinüber war, also tauschte ich auch diesen (von einem schlachtgerät wega 202). danach lief er aber mit stark verzerrtem
ton. ich tauschte den kathodenelko der ELL80, aber leider ohne erfolg. auch der tausch der ELL80 brachte keinen erfolg. nach tausch der EABC80 lief das gerät wieder aber mit starkem netzbrumm. schuld war der netzelko 50µF den ich durch einen modernen elko 150µF 400V ersetzte. danach lief er einwandfrei.
jetzt muss nur das gehäuse auf vordermann gebracht werden.

viele sammlergrüsse, daniel doll

Schaub und Schaub-: Phonosuper Stereo 10
