Super A (W)

Super A ; Schaub und Schaub- (ID = 20005) Radio
Super A ; Schaub und Schaub- (ID = 19783) Radio Super A ; Schaub und Schaub- (ID = 19784) Radio
Use red slider bar for more.
Super A ; Schaub und Schaub- (ID = 19783) Radio

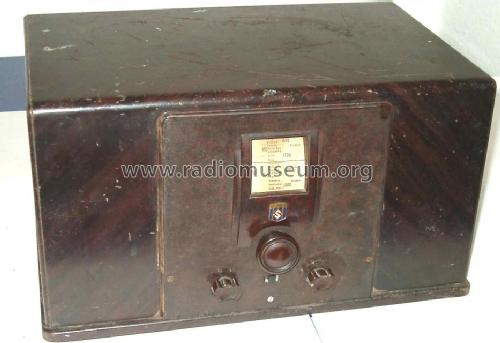

Schaub und Schaub-: Super A [Radio] ID = 19783 933x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super A (W), Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1204 REN904 RENS1214 RENS1204 RES374 RGN1054
Main principle Superheterodyne (common); ZF/IF 470 kHz; Reaction
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Super A - Schaub und Schaub-Lorenz
Material Metal case
Dimensions (WHD) 365 x 235 x 200 mm / 14.4 x 9.3 x 7.9 inch
Notes AVC
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 189.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Radio-Zentrale Prohaska 1933/34
