• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81859

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 155, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

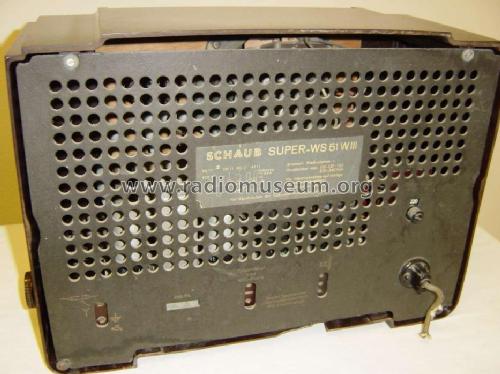

• Model: Super WS51WIII - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 330 x 200 mm / 17.7 x 13 x 7.9 inch

• Notes
• Gehäuse wie WS42 von 1941

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• Price in first year of sale
• 345.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
