Touring Automatik T60

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5951

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF125 AF136 AF126 AF126 AF137 AC122 AC122 AD155 AD155

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Touring Automatik T60 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 188 x 95 mm / 11.8 x 7.4 x 3.7 inch

• Notes
• Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann 6 W Ausgangsleistung;
  Netzbetrieb mit zusätzlichem Netzteil möglich.
  5 Ausführungen:
  11014175= weinrot/hellbraun,
  11014475= moosgrün/hellbraun,
  11014575= perlweiß/hellbraun,
  11014675= cognac/hellbraun,
  11014975= anthrazit/grau.
  Ovallautsprecher 13 x 18 cm.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Price in first year of sale
• 325.00 DM

• Source of data

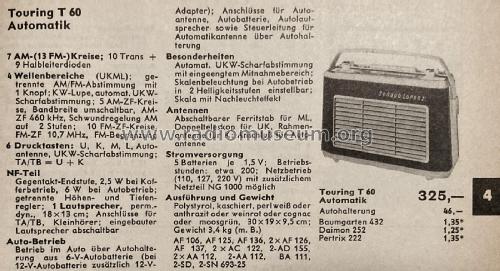

• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
