Westmark-Super W

Westmark-Super W; Schaub und Schaub- (ID = 263601) Radio

Westmark-Super W; Schaub und Schaub- (ID = 9406) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304343) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304344) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304345) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304346) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304347) Radio

Westmark-Super W; Schaub und Schaub- (ID = 304348) Radio

Westmark-Super W; Schaub und Schaub- (ID = 365554) Radio
Westmark-Super W; Schaub und Schaub- (ID = 102175) Radio Westmark-Super W; Schaub und Schaub- (ID = 102176) Radio
Westmark-Super W; Schaub und Schaub- (ID = 102178) Radio Westmark-Super W; Schaub und Schaub- (ID = 102180) Radio
Westmark-Super W; Schaub und Schaub- (ID = 102181) Radio Westmark-Super W; Schaub und Schaub- (ID = 410862) Radio
Westmark-Super W; Schaub und Schaub- (ID = 410864) Radio Westmark-Super W; Schaub und Schaub- (ID = 754942) Radio
Westmark-Super W; Schaub und Schaub- (ID = 782603) Radio Westmark-Super W; Schaub und Schaub- (ID = 782604) Radio
Use red slider bar for more.
Westmark-Super W; Schaub und Schaub- (ID = 102175) Radio

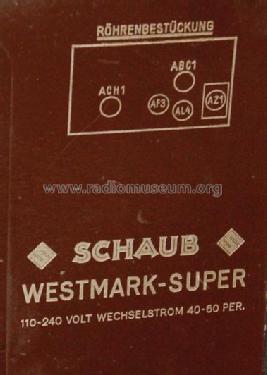

Schaub und Schaub-: Westmark-Super W [Radio] ID = 102175 726x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model Westmark-Super W, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 490 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Westmark-Super W - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 380 x 310 mm / 19.7 x 15 x 12.2 inch
Net weight (2.2 lb = 1 kg) 14.7 kg / 32 lb 6.1 oz (32.379 lb)
Price in first year of sale 175.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
Mentioned in -- Original prospect or advert


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 928 models, 787 with images and 647 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Schaub und Schaub-: Westmark-Super W
Threads: 1 | Posts: 1
Hits: 1653     Replies: 0

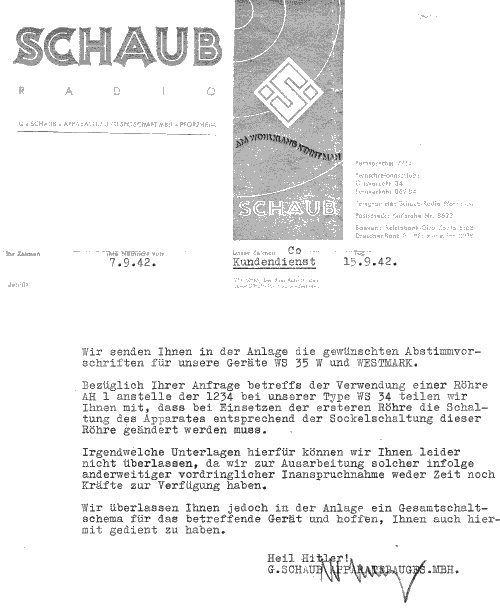

schaub: W; Westmark-Super-Schaub-Kundendienst
