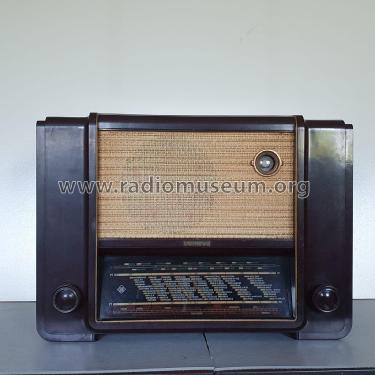

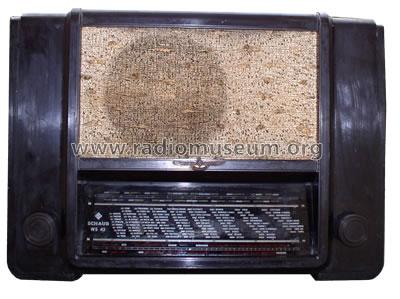

For model Weltsuper WS42 Bakelit mit EM11, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Weltsuper WS42 [Bakelit mit EM11] - Schaub und Schaub-Lorenz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 320 x 260 mm / 17.3 x 12.6 x 10.2 inch
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
