• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71014

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 ECH81 EBF80 EBF80 EM34 EL84 EZ80

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

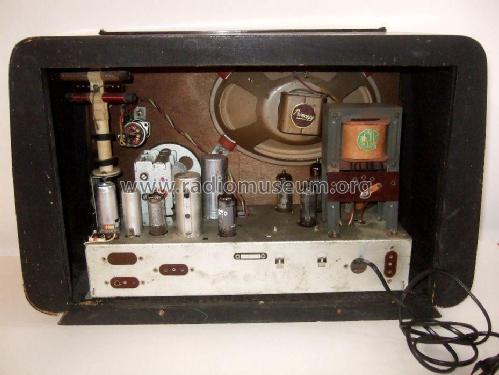

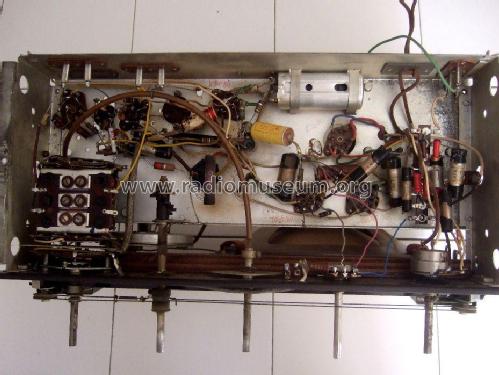

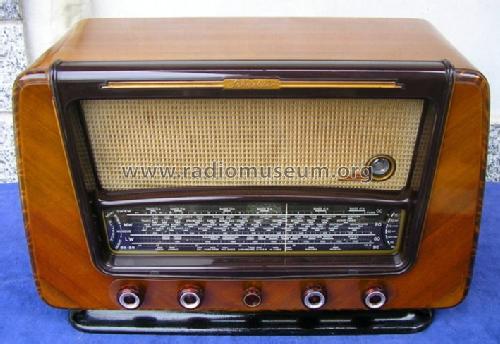

• Model: Adagio - Schneider Frères, Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 340 x 240 mm / 20.5 x 13.4 x 9.4 inch

• Notes

• Équipé de l’antenne ferrite orientable pour PO et GO.

  Il faut noter que la lampe finale est une EL84 et non une EL80 comme marqué par erreur sur le dessin.

  The schematic shows the tube EL80 as the speaker amplifier which in fact is a misprinting. It should be an EL84.

• External source of data
• Serge Laffont/Martin Renoth

• Source of data
• -- Schematic

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 3121)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
