M 14-0

M 14-0; Elprom KB Kliment (ID = 1284975) Radio

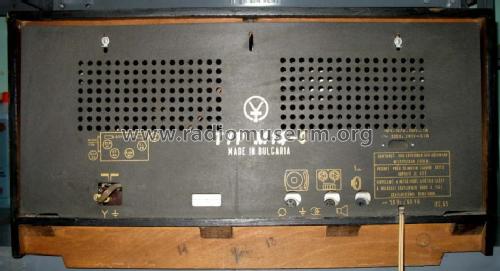

M 14-0; Elprom KB Kliment (ID = 644786) Radio M 14-0; Elprom KB Kliment (ID = 644787) Radio
M 14-0; Elprom KB Kliment (ID = 644789) Radio
Use red slider bar for more.
M 14-0; Elprom KB Kliment (ID = 644786) Radio
Elprom KB Kliment: M 14-0 [Radio] ID = 644786 933x489
Select picture or schematic to display from thumbnails on the right and click for download.
For model M 14-0, Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia:
STS Archív. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Bulgaria
Manufacturer / Brand:  Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: M 14-0 - Elprom KB Kliment Voroshilov
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 626 x 338 x 255 mm / 24.6 x 13.3 x 10 inch
Notes

FM: OIRT.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Collectors' prices

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Here you find 65 models, 60 with images and 49 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
