• Year
  • 1966/1967
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75857

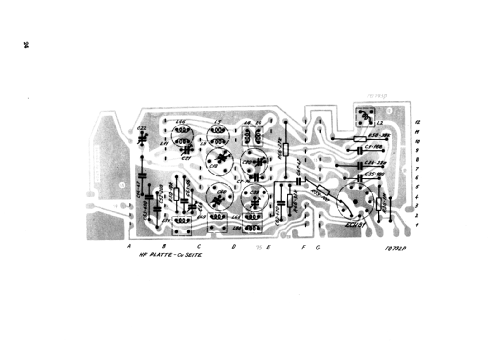

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Melodia M 14-c - Elprom KB Kliment Voroshilov

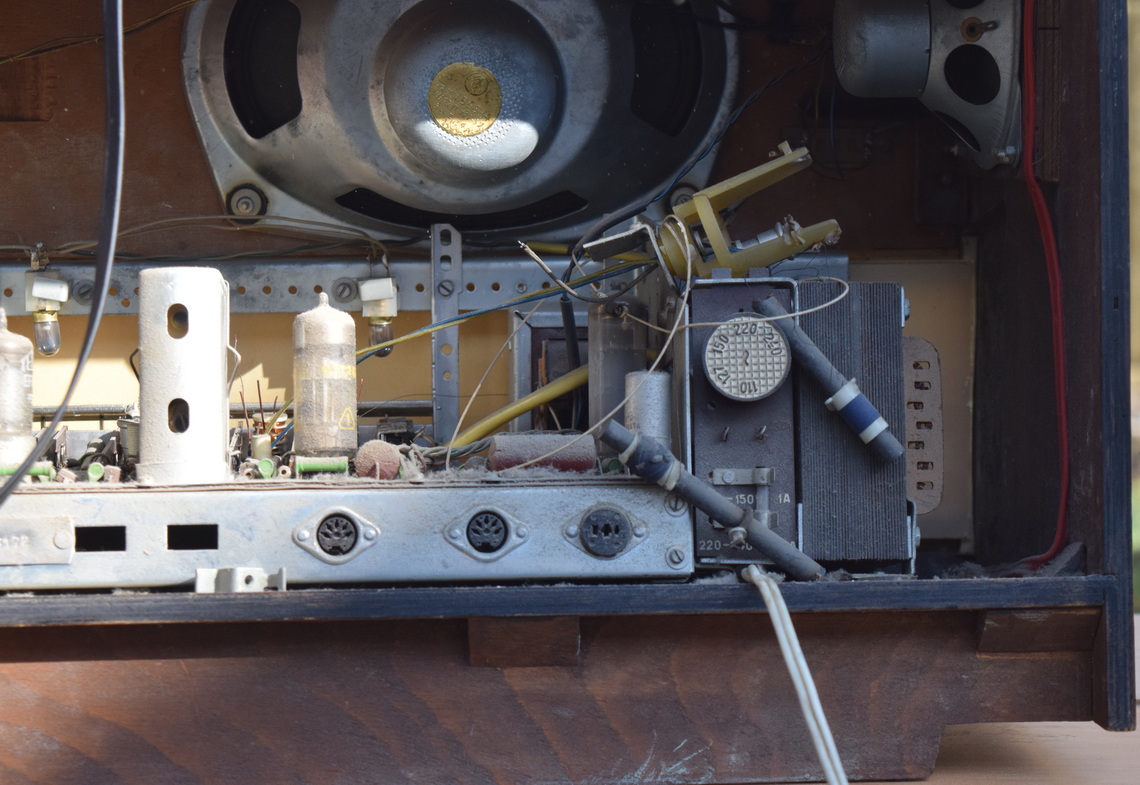

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 627 x 338 x 255 mm / 24.7 x 13.3 x 10 inch
  • Notes
  • Der Empfänger Melodia M14C hat eine mit der FM- Abstimmung einstellbare Kurzwellenlupe und eine drehbare Ferritantenne. Der Funktionsinhalt ist auf 3 Leiterplatten aufgebaut. Das Gerät wurde in der DDR verkauft, Elektroimpex Sofia als Exporteur.
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Price in first year of sale
  • 410.00 M
  • External source of data
  • Funkamateur Heft 10-1967
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Importgeräte- CD vom Funkverlag B. Hein)
  • Author
  • Model page created by Jens Dehne. See "Data change" for further contributors.
