MD21; Sennheiser (ID = 444566) Microphone/PU

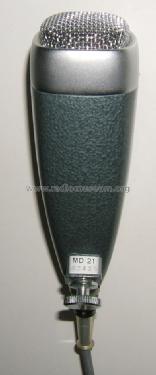

Sennheiser: MD21 [Microphone/PU] ID = 444566 336x384
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD21, Sennheiser Electronic (Labor W); Wennebostel:
aus ebay, mit Erlaubnis des Verkäufers em85

Country:  Germany
Manufacturer / Brand:  Sennheiser Electronic (Labor W); Wennebostel
Year: 1959 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: MD21 - Sennheiser Electronic Labor W;
Material Metal case
Dimensions (WHD) 46 x 46 x 129 mm / 1.8 x 1.8 x 5.1 inch
Notes Dynamisches Mikrofon
Übertragungsbereich 40 bis 18000Hz
Richtcharakteristik Kugel
Empfindlichkeit 1,8mV/Pa
Impedanz 200 Ohm
Anschlußstecker DIN 41524 verschraubt 3polig Von Grundig als GDM 121 vertrieben.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 148.00 DM
Collectors' prices
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Werner Raacke. See "Data change" for further contributors.
