21W; Siemens; D S.& (ID = 356252) Radio
Siemens; D S.&: 21W [Radio] ID = 356252 613x389
Select picture or schematic to display from thumbnails on the right and click for download.
For model 21W, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN804 RE134 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 21W - Siemens; D S.& Halske / S.

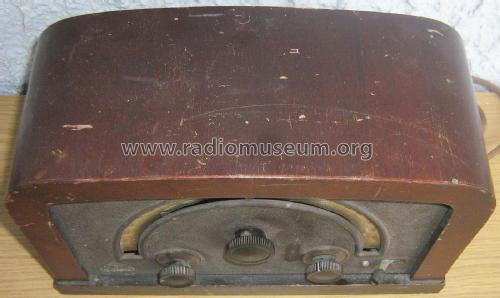

Material Wooden case
Dimensions (WHD) 330 x 210 x 130 mm / 13 x 8.3 x 5.1 inch
Notes LW+MW=1 Bereich (L+C-Abst.!) [569]
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale 92.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1930/31 / Radiokatalog Band 1, Ernst Erb

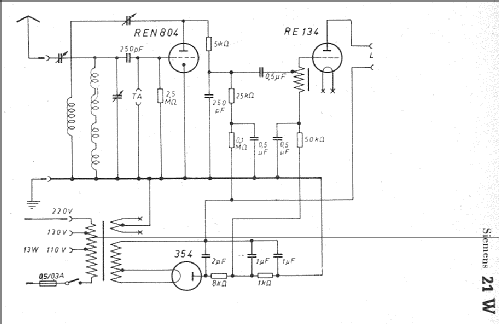

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Funkgeschichte der GFGF (8756)
