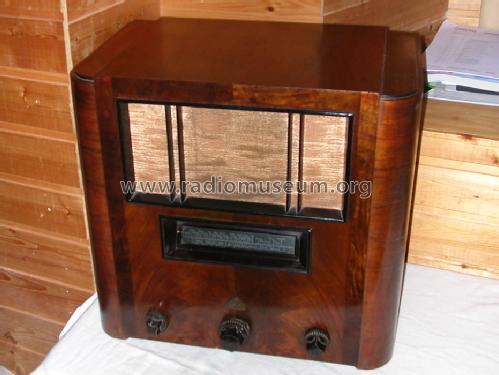

For model Ätherzepp (Aetherzepp) 47GL, Siemens; D (S.& Halske / S. Electrogeräte):
Siemens 47GL

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1819 RENS1819 REN1814 RENS1823d EU
Main principle TRF with regeneration; 2 Special; 1 AF stage(s); Reaction
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110*220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Ätherzepp 47GL - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 410 x 440 x 275 mm / 16.1 x 17.3 x 10.8 inch
Notes

Länderbandskala

Paralleltype zum Telefunken Admiral 346GL in anderem Gehäuse.
Paralleltype zum AEG Ultra-Geadem 304GL in anderem Gehäuse.

Price in first year of sale 267.00 RM !
Collectors' prices
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

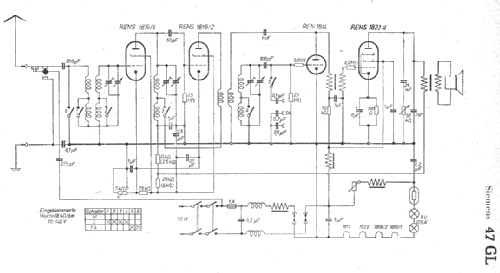

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
