Autosuper 51 SB601AB

Autosuper 51 SB601AB; Siemens; D S.& (ID = 6760) Car Radio

Autosuper 51 SB601AB; Siemens; D S.& (ID = 496694) Car Radio
Autosuper 51 SB601AB; Siemens; D S.& (ID = 70885) Car Radio Autosuper 51 SB601AB; Siemens; D S.& (ID = 304200) Car Radio
Autosuper 51 SB601AB; Siemens; D S.& (ID = 515378) Car Radio Autosuper 51 SB601AB; Siemens; D S.& (ID = 2393377) Car Radio
Use red slider bar for more.
Autosuper 51 SB601AB; Siemens; D S.& (ID = 70885) Car Radio
Siemens; D S.&: Autosuper 51 SB601AB [Car Radio] ID = 70885 602x421
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autosuper 51 SB601AB, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1950–1952 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF41 ECH42 EAF42 EAF42 EL41 or
Semiconductors (the count is only for transistors) 32/2NT6 32/2NT12 Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Autosuper 51 SB601AB - Siemens; D S.& Halske / S.
Material Metal case
Dimensions (WHD) 170 x 115 x 240 mm / 6.7 x 4.5 x 9.4 inch
Notes 3-teilig. Bei 6 Volt Betrieb Zerhacker: 32/2NT6. Bei 12 Volt Betrieb Zerhacker: 32/2NT12.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 498.00 DM

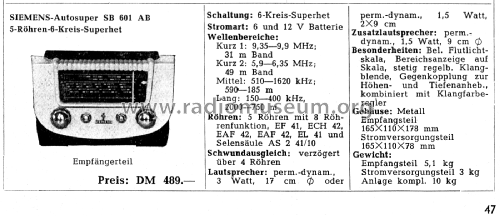

Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
