Bildmeister II (2) FT426

Bildmeister II FT426; Siemens; D S.& (ID = 2547446) Television Bildmeister II FT426; Siemens; D S.& (ID = 2547449) Television
Bildmeister II FT426; Siemens; D S.& (ID = 1775054) Television Bildmeister II FT426; Siemens; D S.& (ID = 1775055) Television
Bildmeister II FT426; Siemens; D S.& (ID = 1775056) Television Bildmeister II FT426; Siemens; D S.& (ID = 1775057) Television
Use red slider bar for more.

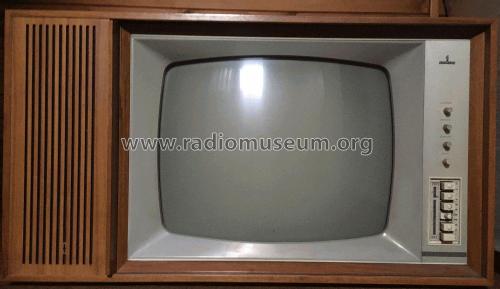

Bildmeister II FT426; Siemens; D S.& (ID = 2547446) Television
Siemens; D S.&: Bildmeister II FT426 [Television] ID = 2547446 1000x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildmeister II (2) FT426, Siemens; D (S.& Halske / S. Electrogeräte):
Frau Kayser

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1963/1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCC88 PCF82 EF183 EF80 EF80 EF80 PCL84 PCL85 ECH84 PL500 PY88 DY86 PCL86 PCF802 A59-11W
Semiconductors (the count is only for transistors) 2: AF139 AF139
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bildmeister II FT426 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 970 x 870 x 420 mm / 38.2 x 34.3 x 16.5 inch
Notes VHF/UHF. Abschließbare Holzjalousie und abnehmbares Fußgestell.
Chassis-Hersteller NordMende.
Net weight (2.2 lb = 1 kg) 38 kg / 83 lb 11.2 oz (83.7 lb)
Price in first year of sale 1'258.00 DM
Source of data Handbuch VDRG 1963/1964

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
