Domino Super 131.612

Domino Super 131.612; Siemens-Austria WSW; (ID = 9571) Radio

Domino Super 131.612; Siemens-Austria WSW; (ID = 345870) Radio

Domino Super 131.612; Siemens-Austria WSW; (ID = 900190) Radio

Domino Super 131.612; Siemens-Austria WSW; (ID = 901078) Radio

Domino Super 131.612; Siemens-Austria WSW; (ID = 2363536) Radio
Domino Super 131.612; Siemens-Austria WSW; (ID = 57785) Radio Domino Super 131.612; Siemens-Austria WSW; (ID = 1181098) Radio
Domino Super 131.612; Siemens-Austria WSW; (ID = 1181099) Radio Domino Super 131.612; Siemens-Austria WSW; (ID = 1181100) Radio
Use red slider bar for more.
Domino Super 131.612; Siemens-Austria WSW; (ID = 57785) Radio
Siemens-Austria WSW;: Domino Super 131.612 [Radio] ID = 57785 933x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model Domino Super 131.612, Siemens-Austria (WSW); Wien:
Sammlung: A. Fröhlich

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10800 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Domino Super 131.612 - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 451 x 258 x 180 mm / 17.8 x 10.2 x 7.1 inch
Notes

7 Tasten

Nachfolger von Domino Super 602 mit neuem Duplextrieb und geändertem Layout

Price in first year of sale 1'565.00 öS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

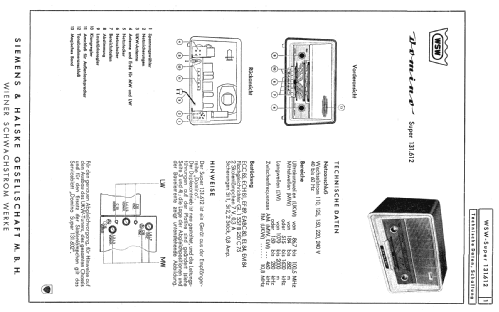

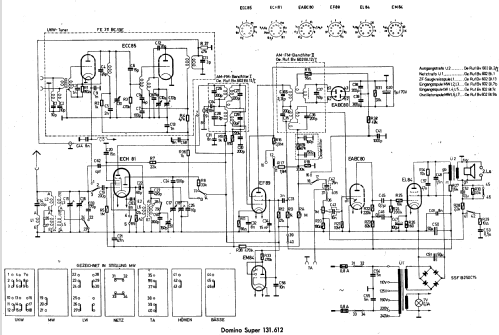

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Siemens-Austria (WSW); Wien
Here you find 197 models, 174 with images and 129 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
