Frequenznormal Rel 3F 129
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1954 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 173030
- Number of Tubes
- 14
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Frequenznormal Rel 3F 129 - Siemens & Halske, -Schuckert
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 550 x 232 x 375 mm / 21.7 x 9.1 x 14.8 inch
- Notes
- Normalfrequenzen: 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz;
Frequenzunsicherheit: +- 1x10 hoch minus 7;
Ausgangsspannung: etwa 2V;
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Mentioned in

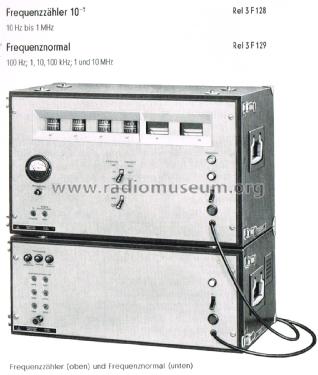

- Messgeräte für die Nachrichtentechik 1956 (Siemens)
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
