Polydor-Musiktruhe W540/M30 Ch= M848
Deutsche Grammophon: Polydor-Musiktruhe W540/M30 Ch= M848 [Radio] ID = 775071 480x640

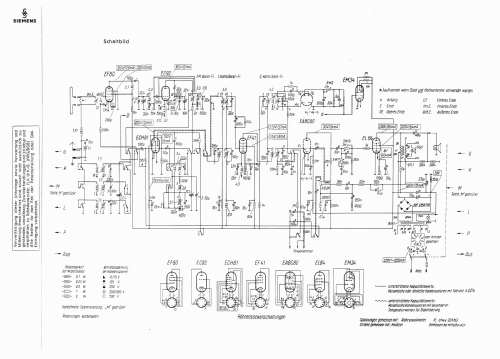

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Polydor | ||||
|---|---|---|---|---|---|
| Year: 1954/1955 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: EF80 EC92 ECH81 EF41 EM34 EABC80 EL84 |
| Main principle | Superheterodyne (common); ZF/IF 468/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | Changer (Record changer) |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220; 240 Volt |
| Loudspeaker | 4 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Polydor-Musiktruhe W540/M30 Ch= M848 - Deutsche Grammophon AG |
| Material | Wooden case |

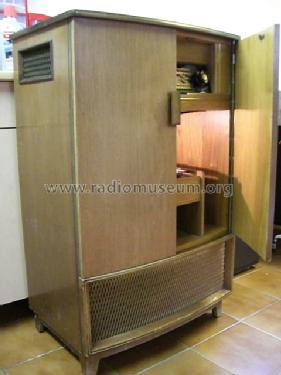

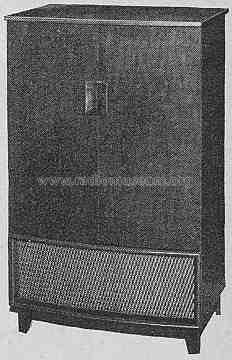

| Shape | Console with Push Buttons. |
| Dimensions (WHD) | 600 x 950 x 410 mm / 23.6 x 37.4 x 16.1 inch |
| Notes | Rundfunk-Chassis = Siemens M848; Phono-Chassis = Polydor PW6. |
| Net weight (2.2 lb = 1 kg) | 33 kg / 72 lb 11 oz (72.687 lb) |
| Price in first year of sale | 688.00 DM |
| External source of data | Erb |
| Source of data | Rundfunk- und Fernseh-Katalog 1954/55 |
