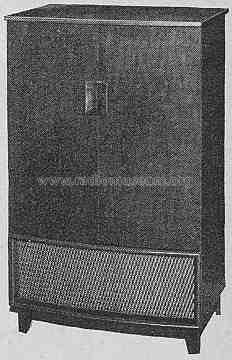

Polydor-Musiktruhe W540/M3 Ch= M848

Deutsche Grammophon-AG; Berlin

Data
Forum
Pictures
Collections

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 19707
    • Brand: Polydor

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Polydor-Musiktruhe W540/M3 Ch= M848 - Deutsche Grammophon-AG; Berlin
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 600 x 950 x 410 mm / 23.6 x 37.4 x 16.1 inch
  • Notes
  • Rundfunk-Chassis = Siemens M848;
    Phono-Chassis = Polydor W3340.
  • Net weight (2.2 lb = 1 kg)
  • 31 kg / 68 lb 4.5 oz (68.282 lb)
  • Price in first year of sale
  • 598.00 DM
  • External source of data
  • Erb
