• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1960

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 123311

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84 90C1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Metal case

• from Radiomuseum.org

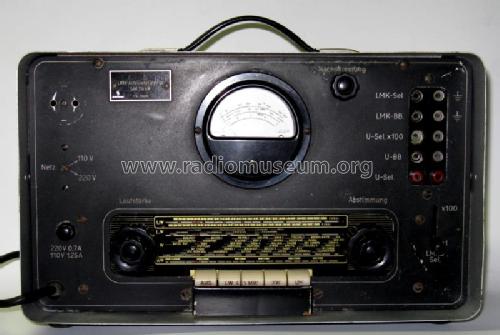

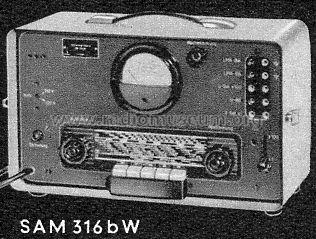

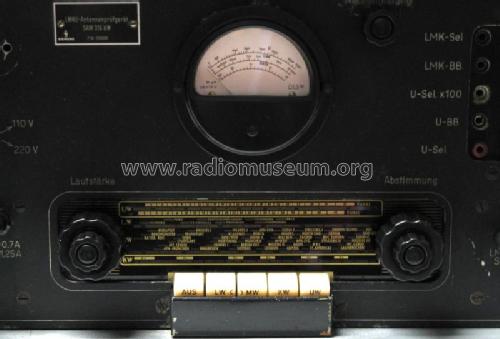

• Model: Rundfunk-Antennenprüfgerät SAM316bW - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 245 x 190 mm / 15.2 x 9.6 x 7.5 inch

• Notes
• Das Grundchassis ist ein erweitertes Loewe Bella Chassis 4705W.
  Die 90C1 stabilisiert die Schirmgitterspannungen der ECH81 und der EF89.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)
