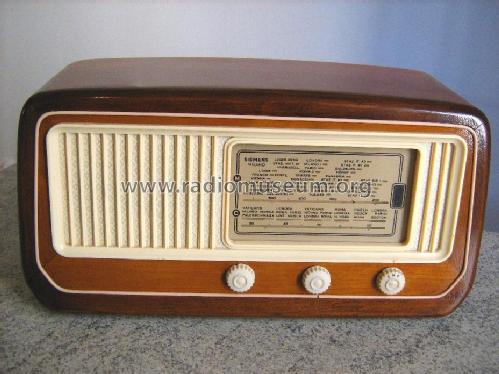

For model SM5025, Siemens Italia; Milano

Country:  Italy
Manufacturer / Brand:  Siemens Italia; Milano
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 DM70
Main principle Superheterodyne (common); ZF/IF 469 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: SM5025 - Siemens Italia; Milano

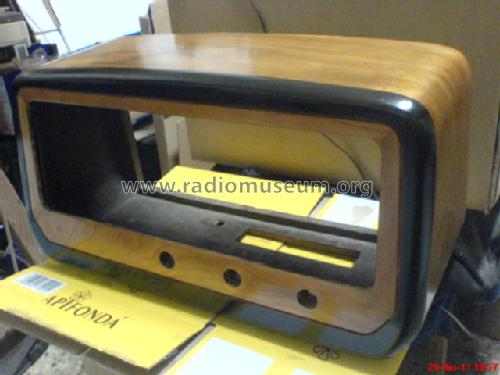

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 250 x 200 mm / 19.3 x 9.8 x 7.9 inch
Source of data Guida Pratica Antique Radio IV (2001)

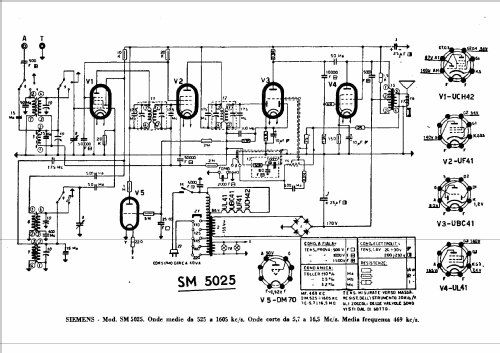

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Siemens Italia; Milano
Here you find 196 models, 152 with images and 149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Siemens Italia;: SM5025
Threads: 1 | Posts: 2
Hits: 1796     Replies: 1
siemens: Condensatori mica SM5025 ;
Pierfausto Bonomi
10.Jul.11
  1

Qualcuno sà dirmi come vanno letti i valori dei condensatori a mica sullo schema della SM5025?

Sono espressi in pf?

Wolfgang Bauer
11.Jul.11
  2

Si, in pF.
Escludendo i valori che sono scritti in µF.

Saluti WB.
