• Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 117406

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 469 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

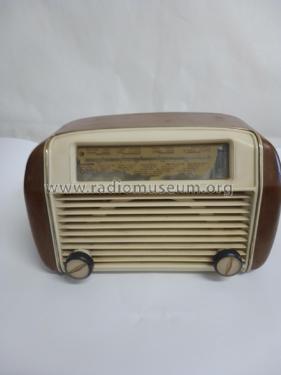

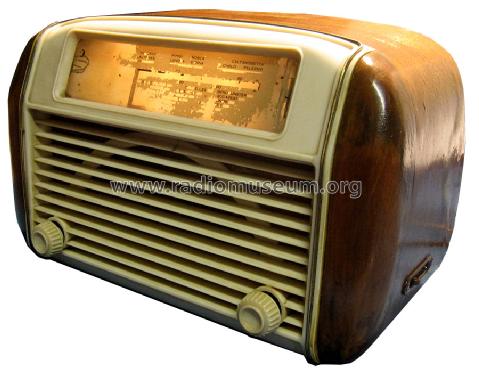

  • Model: SM525 - Siemens Italia; Milano
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 160 x 135 mm / 11.8 x 6.3 x 5.3 inch
  • Notes
  • Serie ANIE.
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Siemens Italia;: SM525

Threads: 1 | Posts: 3

Salve a tutti.

Sono in possesso di una bella Siemens SM_525. Al mio modello manca una valvola, e le altre sono illeggibili. Sul RMORG ho trovato schema e foto, ma la disposizione valvole non corrisponde al modello in mio possesso.

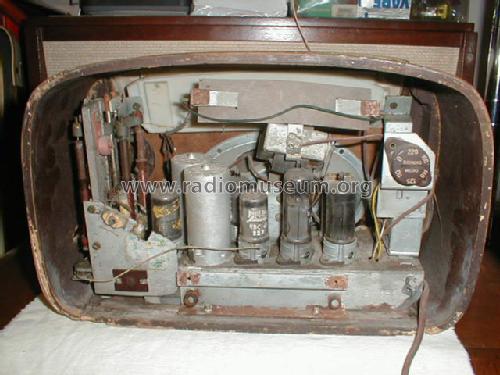

Date una ta alle foto allegate e capirete.Soprattutto: che sigla ha la valvola mancante?

Grazie in anticipo a tutti

Gori Spartaco

Attachments

Spartaco Gori, 11.Oct.12
