SM836

SM836; Siemens Italia; (ID = 488194) Radio

SM836; Siemens Italia; (ID = 2468715) Radio
SM836; Siemens Italia; (ID = 2108746) Radio SM836; Siemens Italia; (ID = 2108748) Radio
SM836; Siemens Italia; (ID = 2108747) Radio SM836; Siemens Italia; (ID = 943434) Radio
SM836; Siemens Italia; (ID = 1160349) Radio SM836; Siemens Italia; (ID = 1402354) Radio
SM836; Siemens Italia; (ID = 1402355) Radio
Use red slider bar for more.
SM836; Siemens Italia; (ID = 2108746) Radio
Siemens Italia;: SM836 [Radio] ID = 2108746 1400x843
Select picture or schematic to display from thumbnails on the right and click for download.
For model SM836, Siemens Italia; Milano

Country:  Italy
Manufacturer / Brand:  Siemens Italia; Milano
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 6AJ8 or ECH81 EF89 EM34 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 469/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: SM836 - Siemens Italia; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 290 x 225 mm / 21.7 x 11.4 x 8.9 inch
Notes Gamma FM: 87,5-100 MHz. Serie ANIE MF.
Source of data Guida Pratica Antique Radio (1) 1999

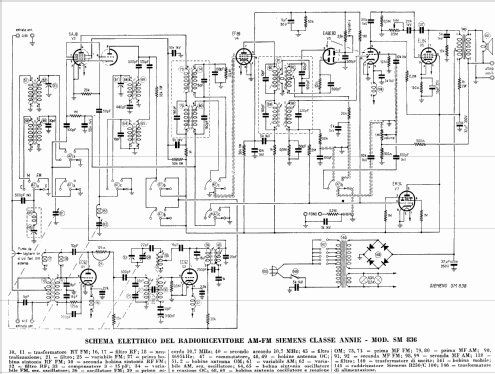

Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
