Sperrkreis Rfz.14

Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302504) Misc Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302505) Misc
Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302506) Misc Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302507) Misc
Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302508) Misc Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302509) Misc
Use red slider bar for more.

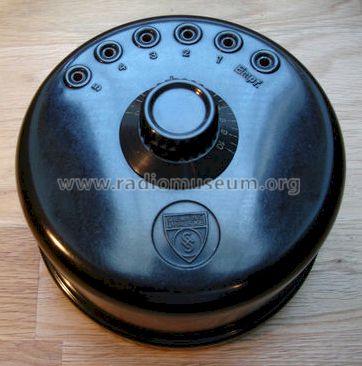

Sperrkreis Rfz.14; Siemens; D S.& (ID = 1302504) Misc
Siemens; D S.&: Sperrkreis Rfz.14 [Misc] ID = 1302504 362x366
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sperrkreis Rfz.14, Siemens; D (S.& Halske / S. Electrogeräte):
Ebay auction by user amato125 251142557732

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1928 ? Category: Miscellaneous (Other, Various) - see notes
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sperrkreis Rfz.14 - Siemens; D S.& Halske / S.
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 158 x 110 x 0 mm / 6.2 x 4.3 x 0 inch
Notes Siemens Sperrkreis Rfz.14;
Unterdrückt störende Wellen und ermöglicht auch in der Nähe starker Sender störungsfreien Fernempfang. Wellenbereich 200...640 m. Fünf Antennenanpassungen.
Vergleiche mit dem weitgehend baugleichen >Telefunken Rfz 15<.
Net weight (2.2 lb = 1 kg) 0.470 kg / 1 lb 0.6 oz (1.035 lb)
