Spezialsuper 53 SH830GW

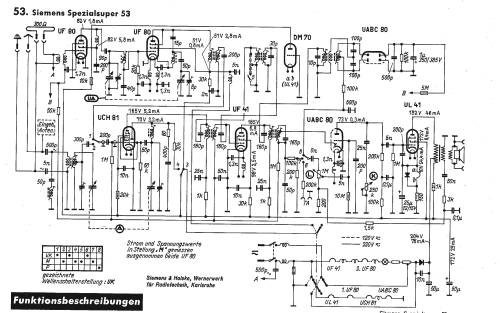

Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 503751) Radio
Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 318665) Radio Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 318666) Radio
Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 318667) Radio Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 318668) Radio
Use red slider bar for more.
Spezialsuper 53 SH830GW; Siemens; D S.& (ID = 318665) Radio
Siemens; D S.&: Spezialsuper 53 SH830GW [Radio] ID = 318665 791x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spezialsuper 53 SH830GW, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF80 UF80 UCH81 UF41 DM70 UABC80 UL41
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 120; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Spezialsuper 53 SH830GW - Siemens; D S.& Halske / S.
Material Wooden case
Dimensions (WHD) 485 x 300 x 214 mm / 19.1 x 11.8 x 8.4 inch
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Source of data - - Data from my own collection

Model page created by Willi Ribbe. See "Data change" for further contributors.
