• Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23850

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Spezialsuper RC20 [Nussbaum] - Siemens & Halske, -Schuckert
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 580 x 350 x 230 mm / 22.8 x 13.8 x 9.1 inch
  • Notes

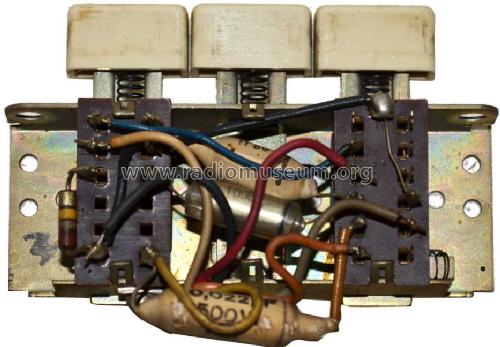

  • 1 perm.-dyn. Breitbandlautsprecher 26 x 15 cm und 2 Elektrostaten 8 cm, Drucktastenaggregat mit 7 Tasten, schwenkbare Siferritantenne für MW+LW, Klangregister mit Tasten für Sprache, Musik und Klangregler, Bass und Höhensteller, 4 Watt Endstufe, Magisches Band, Anschlüsse für TA, TB und ext. Lautsprecher (niederohmig).

    Gehäuse in Nußbaum natur-seidenglanz.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Price in first year of sale
  • 343.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
