Tango UKW-Super 573W

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 9543) Radio

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 696103) Radio

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 898529) Radio

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 568973) Radio

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 910512) Radio
Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 2023700) Radio Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 309174) Radio
Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 1087506) Radio Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 309177) Radio
Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 309178) Radio Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 31136) Radio
Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 309175) Radio Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 1087507) Radio

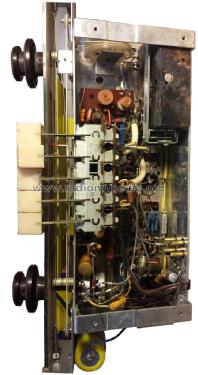

Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 1087508) Radio Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 1591635) Radio
Use red slider bar for more.
Tango UKW-Super 573W; Siemens-Austria WSW; (ID = 2023700) Radio
Siemens-Austria WSW;: Tango UKW-Super 573W [Radio] ID = 2023700 1400x901
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tango UKW-Super 573W, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) B250C90
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Tango UKW-Super 573W - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 470 x 295 x 205 mm / 18.5 x 11.6 x 8.1 inch
Notes
  • 5 Tasten
  • 2 Skalenlämpchen 7V; 0,3A
  • 2 Sicherungen 0,8A
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 1'695.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
