S194A, S194A -20; Siera; Belgien (ID = 259433) Radio

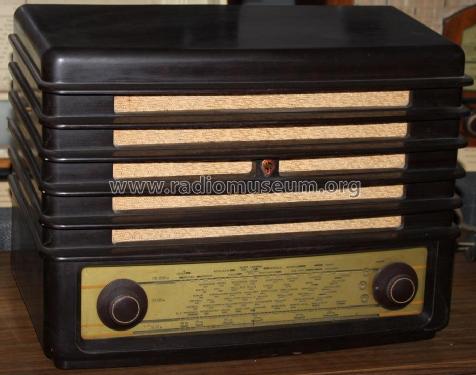

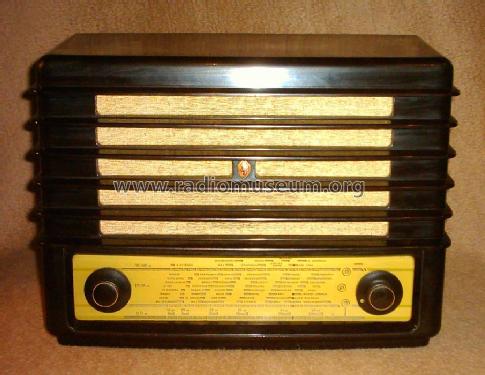

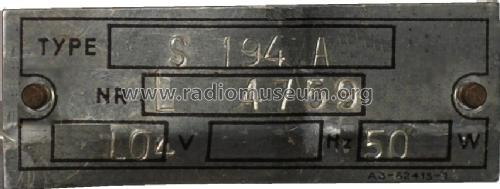

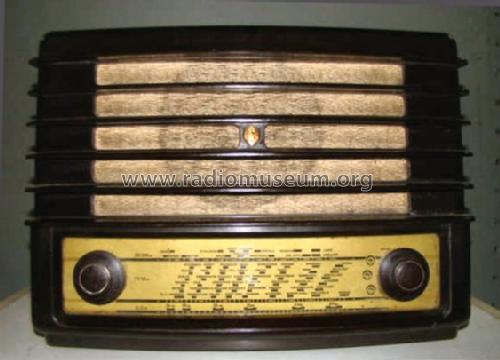

Siera; Belgien: S194A, S194A -20 [Radio] ID = 259433 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model S194A, S194A -20, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner

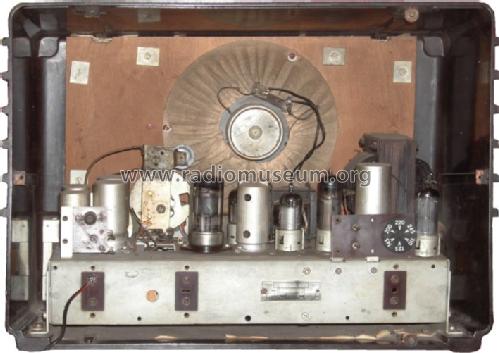

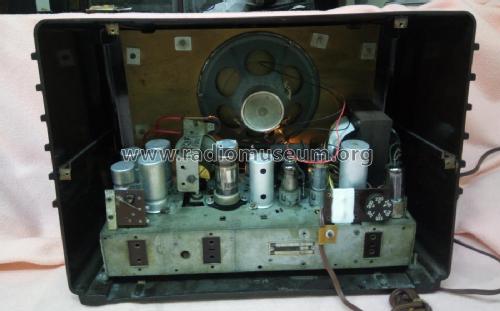

Valves / Tubes 5: UCH21 UAF41 UAF41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: S194A, S194A -20 - Siera; Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 405 x 295 x 215 mm / 15.9 x 11.6 x 8.5 inch
Notes
3 Band reception:
  • LW: 700 - 2000 m.
  • BC: 175 - 588 m.
  • SW: 16 - 52 m.
Tuning scale light bulbs type: 2 x 8045D (E10, 6.3V, 320mA).
Loudspeaker Philips type 9726. Connectors for second loudspeaker and for pick-up. Dimensions including knobs.
This model is comparable with Philips BX464A.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 455.00 SFR
Collectors' prices
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.

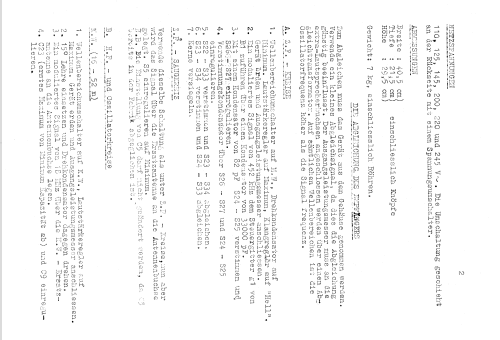

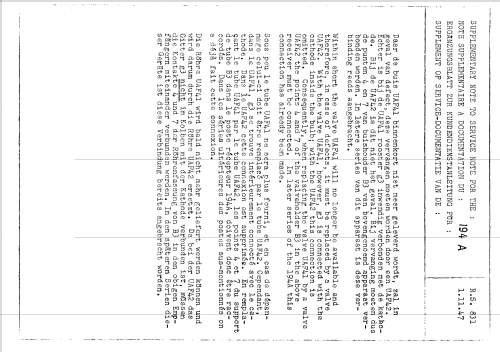

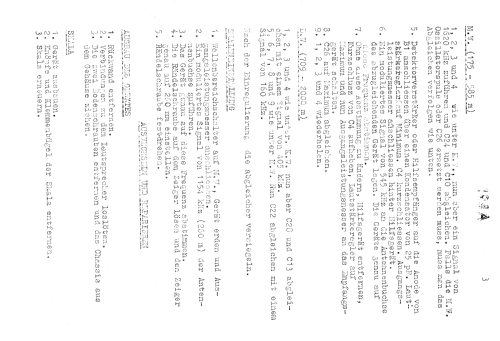

Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Siera; Belgien
Here you find 429 models, 386 with images and 161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
