S194U, S194U -20

S194U, S194U -20; Siera; Belgien (ID = 1018337) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936603) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936604) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936606) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936607) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936608) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936609) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936610) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936611) Radio

S194U, S194U -20; Siera; Belgien (ID = 1936612) Radio
S194U, S194U -20; Siera; Belgien (ID = 432714) Radio S194U, S194U -20; Siera; Belgien (ID = 524496) Radio
S194U, S194U -20; Siera; Belgien (ID = 711634) Radio S194U, S194U -20; Siera; Belgien (ID = 1245020) Radio
S194U, S194U -20; Siera; Belgien (ID = 1245021) Radio S194U, S194U -20; Siera; Belgien (ID = 1245022) Radio
S194U, S194U -20; Siera; Belgien (ID = 1245023) Radio
Use red slider bar for more.
S194U, S194U -20; Siera; Belgien (ID = 432714) Radio

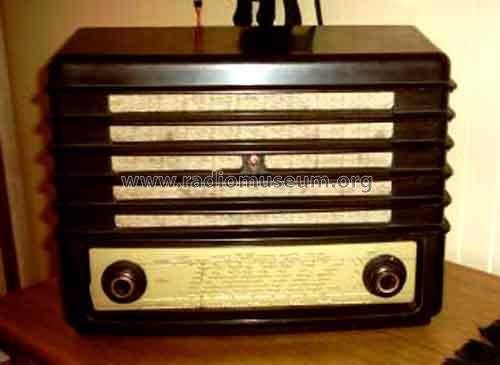

Siera; Belgien: S194U, S194U -20 [Radio] ID = 432714 500x365
Select picture or schematic to display from thumbnails on the right and click for download.
For model S194U, S194U -20, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UAF41 UAF41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-125; 200-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: S194U, S194U -20 - Siera; Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 290 x 210 mm / 16.1 x 11.4 x 8.3 inch
Notes
3 Band reception:
  • LW: 709 - 2000 m.
  • BC: 175 - 588 m.
  • SW: 16 - 52 m.
Tuning scale light bulbs type: 8095D (19V, 90mA).
Loudspeaker Philips type 9726. Connectors for second loudspeaker and for pick-up.


Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 455.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.

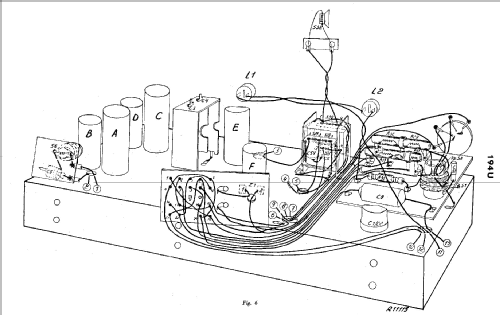

Literature/Schematics (1) -- Original-techn. papers. (Generic model 194U by Philips dated 1948)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
