234A

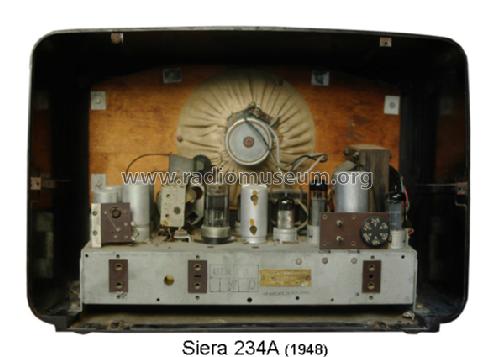

234A; Siera; Belgien (ID = 365113) Radio 234A; Siera; Belgien (ID = 365114) Radio
Use red slider bar for more.

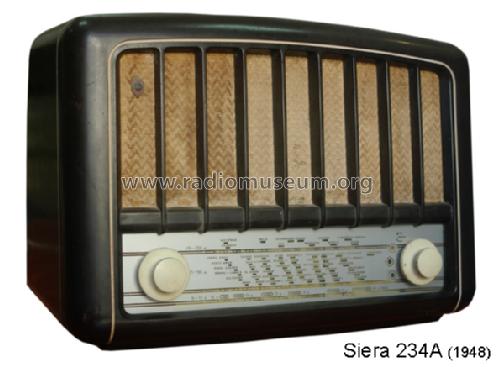

234A; Siera; Belgien (ID = 365113) Radio
Siera; Belgien: 234A [Radio] ID = 365113 595x437
Select picture or schematic to display from thumbnails on the right and click for download.
For model 234A, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 234A - Siera; Belgien
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 405 x 295 x 215 mm / 15.9 x 11.6 x 8.5 inch
Notes This model is completely identical to the H234A of NSF (Netherlands) but for the Siera badge on the grille-cloth.
Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)

Model page created by Dejan Dizdar. See "Data change" for further contributors.
