S100U-04 (S100U)

S100U-04 ; Siera; Eindhoven NL (ID = 1095473) Radio S100U-04 ; Siera; Eindhoven NL (ID = 1095465) Radio
S100U-04 ; Siera; Eindhoven NL (ID = 1095466) Radio S100U-04 ; Siera; Eindhoven NL (ID = 1095467) Radio
S100U-04 ; Siera; Eindhoven NL (ID = 1095468) Radio S100U-04 ; Siera; Eindhoven NL (ID = 1095469) Radio
S100U-04 ; Siera; Eindhoven NL (ID = 1095470) Radio S100U-04 ; Siera; Eindhoven NL (ID = 1095471) Radio
S100U-04 ; Siera; Eindhoven NL (ID = 1095472) Radio S100U-04 ; Siera; Eindhoven NL (ID = 1389928) Radio
Use red slider bar for more.
S100U-04 ; Siera; Eindhoven NL (ID = 1095473) Radio

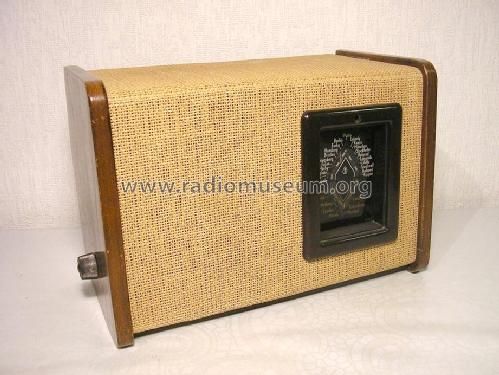

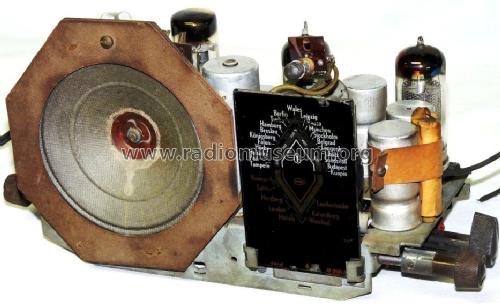

Siera; Eindhoven NL: S100U-04 [Radio] ID = 1095473 933x746
Select picture or schematic to display from thumbnails on the right and click for download.
For model S100U-04 (S100U), Siera; Eindhoven (NL)

Country:  Netherlands
Manufacturer / Brand:  Siera; Eindhoven (NL)
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / (110) 125; (200) 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: S100U-04 - Siera; Eindhoven NL
Material Leather / canvas / plastic - over other material
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 264 x 180 x 130 mm / 10.4 x 7.1 x 5.1 inch
Notes

No tuning scale light, but neon bulb as indicator for on/off.

The mains voltage selector has only 2 positions: 125 and 220 Volt. To select 110 or 200 Volt, R38 has to be shorted and the labels on the selector switch have to be exchanged.

This model is based on the chassis of model Philips 203U.
See also Mediator M100U and Siera S100U-40.

Attention: chassis connected to the mains ! We do not always tell in such situations since only trained persons should work with electrical apparatus.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Mentioned in Radio Historisch Tijdschrift Nr. 164, March 2018, p. 13-20

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
